Verified by manufacturer 6 months ago
Back to wall standard WC pan with horizontal outlet. Great all-rounder suitable for all sectors.
Suitable for all sectors.

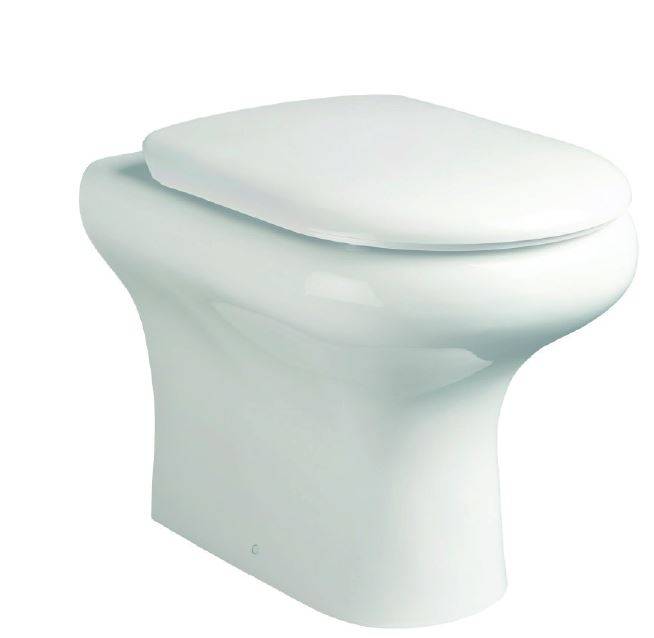

SanCeram Chartham back to wall standard WC pan with horizontal outlet.
Features and benefits:
Color | White Guidance for specification option: Alpine white. |
Finish | Smooth Guidance for specification option: Alpine white. |
Material | Vitreous china Guidance for specification option: To BS 3402. |
Length | 510 mm Manufacturer guidanceDepth |
Width | 370 mm |
Height | 400 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | N13/10 WC pans and flushing arrangements N13/300 WCs and cisterns |
Form | Back-to-wall, box rim, washdown. |
Pan height | 400 mm. |
Materials | |
Body | Vitreous china to BS 3402. |
Finish and colour | Alpine white. |
Water supply, outlet and seat holes | |
Outlet | TSWC115: Convert to P trap. |
Seat holes | Standard pattern.Guidance for specification option: 160 mm centres. |
Flushing arrangement | CIST101. Guidance for specification option: Mirage concealed dual flush lever cistern. CIST102. Guidance for specification option: Mirage concealed dual flush dimple lever cistern. CIST103. Guidance for specification option: Miniflo concealed single flush cistern with square button. CIST104. Guidance for specification option: Miniflo concealed dual flush cistern with square button. CIST105. Guidance for specification option: Miniflo concealed single flush cistern with palm push button. |
Seat design | CHWC109. Guidance for specification option: Chartham seat and cover. CHWC110. Guidance for specification option: Chartham soft close seat and cover. |
Fixings | Floor fixing pack. Guidance for specification option: Supplied. |
Weight | 22.7 kg. |
Size: | 370 x 510 x 400 mm. Guidance for specification option: W x D x H. |
