Application

Suitable for all sectors.

Description

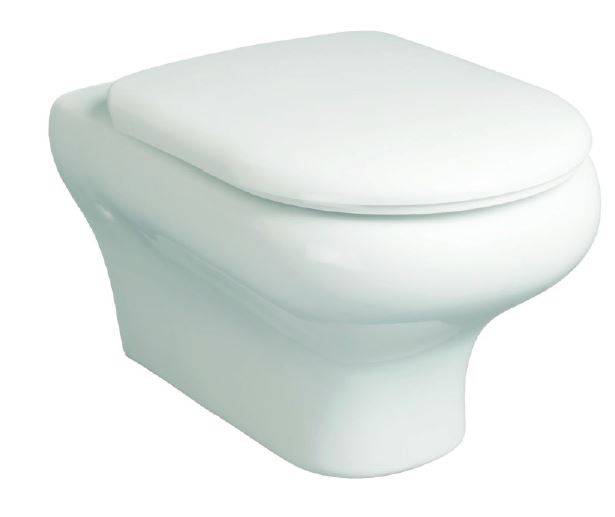

Wall hung standard projection WC pan with horizontal outlet suitable for all sectors.


Features and benefits:

  • Sleek, easy clean design.
  • Standard projection.
  • Box rim flushing.
  • Wall hung installation reduces dirt traps.
  • Manufactured from high quality vitreous china to BS 3402.
  • Meets all BS EN 997:2018.
  • Seat not included.

General information

Color

White

Guidance for specification option:

Alpine white.

Finish

Smooth

Guidance for specification option:

Alpine white.

Material

Vitreous china

Guidance for specification option:

To BS 3402.

Length

520 mm

Width

370 mm

Height

330 mm

Warranty description

25 year

Uniclass

Pr_40_20_93_94 WC pansPrimary

CAWS

N13/10 WC pans and flushing arrangements

N13/300 WCs and cisterns

Specification data - WC pans

Form

Wall-mounted, standard projection, washdown.

Pan height

400 mm.

Materials

-

Body

Vitreous china to BS 3402.

Finish and colour

Alpine white.

Water supply, outlet and seat holes

-

Outlet

TSWC115: Convert to P trap.

Seat holes

Standard pattern.

Guidance for specification option:

158 mm centres, 435 mm back.

Flushing arrangement

CIST101.

Guidance for specification option:

Mirage concealed dual flush lever cistern.

CIST102.

Guidance for specification option:

Mirage concealed dual flush dimple lever cistern.

CIST103.

Guidance for specification option:

Miniflo concealed single flush cistern with square button.

CIST104.

Guidance for specification option:

Miniflo concealed dual flush cistern with square button.

CIST105.

Guidance for specification option:

Miniflo concealed single flush cistern with palm push button.

Show more

Seat design

CHWC109.

Guidance for specification option:

Chartham seat and cover.

CHWC110.

Guidance for specification option:

Chartham soft close seat and cover.

Fixings

TSWC117: Support brackets.

Guidance for specification option:

Support brackets and fixings for wall hung pans (not required if using CIST112).

Volume

520 L.

Width

370 mm.

Weight

19 kg.
