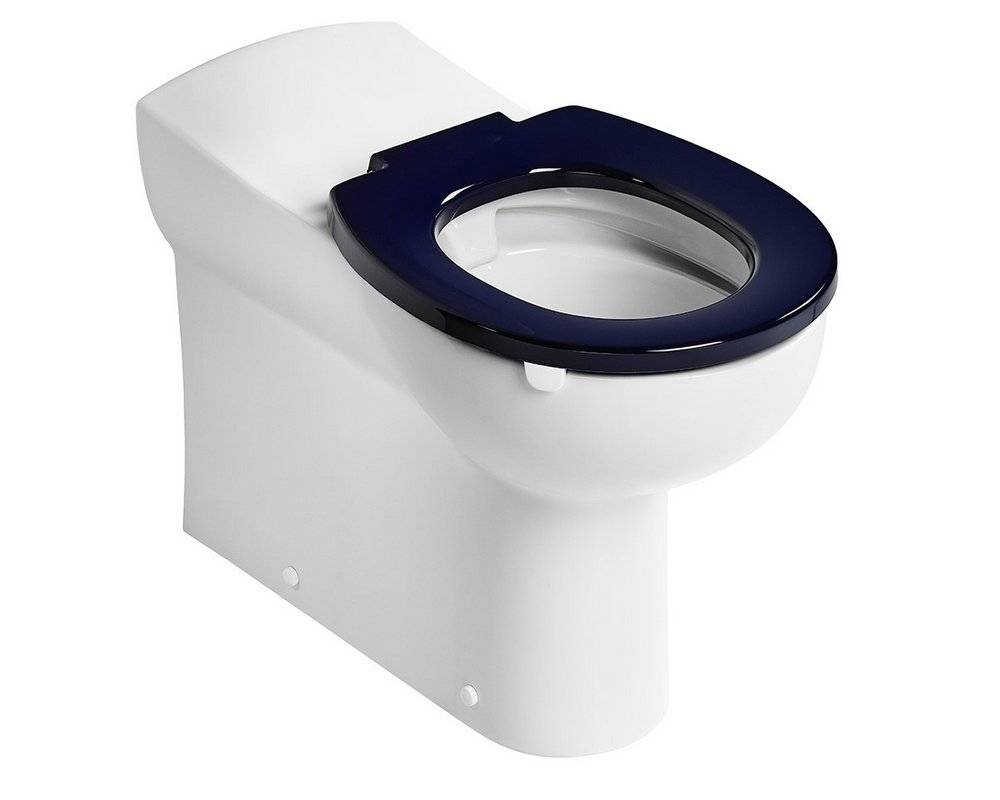

Contour 21 700mm projection BTW Pan Raised Height
Verified by manufacturer 5 months ago
HBN / SHTM compliant rimless 700mm projection back-to-wall toilet.
Application
Suitable for healthcare and commercial use.
Description
Armitage Shanks Contour 21+ rimless back-to-wall HBN / SHTM compliant 700mm projection WC.
Features and benefits:
- 700 mm projection.
- Rimless toilet bowl.
- Horizontal outlet.
- Anti-microbial glaze.
- Water-efficient.
- WC pan screwed to floor using concealed brackets (supplied).
- HBN / SHTM compliant ref: WC HD healthcare WC pan.
General information
Color | White |
Finish | Anti-microbial |
Material | Vitreous china |
Shape | Other |
Length | 700 mm |
Height | 450 mm |
Uniclass | |
CAWS | N13/302 WCs and flushing valves N13/10 WC pans and flushing arrangements |
Specification data - WC pans
Standard | To BS EN 997. |
Form | Back-to-wall. |
Connecting dimensions | To BS EN 33. |
Pan height | 450 mm. |
Materials | |
Body | Vitreous china. |
Finish and colour | White. |
Water supply, outlet and seat holes | |
Outlet | Horizontal back outlet. |
Integral accessories | Not required.S3640 - Conceala 2 4.5 litre cistern.Guidance for specification option: Single flush valve, side supply, internal overflow and alternative height plastic flushbends. S3643 - Conceala 2 4.5/3 or 4/2.6 litre cistern.Guidance for specification option: Dual flush valve, side supply, internal overflow, alternative height plastic flushbends, no flushplate/ button. S4065 - Contour 21 toilet seat and coverGuidance for specification option: Top fixing hinges. S4067 - Contour 21 toilet seat retaining buffers, whtie.S4504 - Contemporary flush plate.Guidance for specification option: Dual flush with Armitage Shanks logo for Conceala 2 cisterns. S4512 - Finger push button.Guidance for specification option: Pneumatic, stainless steel for 31 mm maximum thickness partition. S4513 - Palm push button.Guidance for specification option: Pneumatic, stainless steel for 31 mm maximum thickness partition. S4305 - Panekta outlet connector.Guidance for specification option: To convert horizontal outlet WCs to P trap. S4300 - Panekta outlet connector.Guidance for specification option: To convert horizontal outlet WCs to S or turned P trap. |
Projection | 700 mm. |
