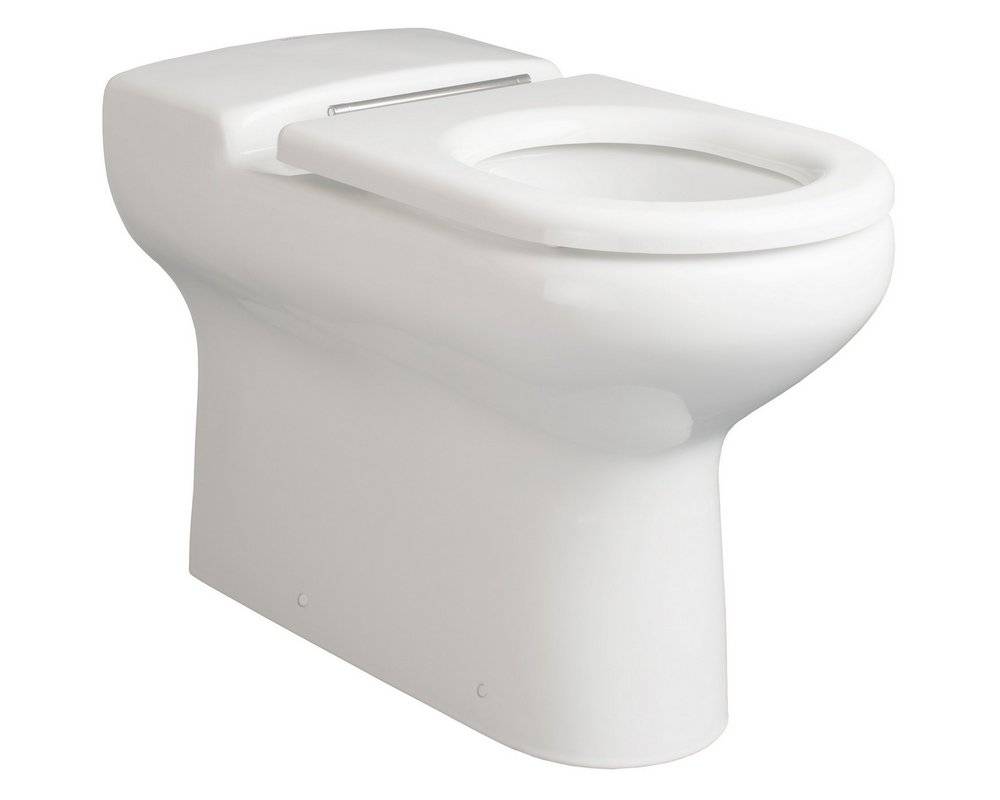

Chartham Rimless 700 Projection Healthcare Back to Wall WC
Verified by manufacturer 6 months ago
700 mm projection rimless back to wall WC pan that is HBN compliant.
Application
Suitable for healthcare sectors.
Description
SanCeram Chartham rimless back to wall raised height WC pan with horizontal outlet.
Features and benefits:
- Part of the Chartham range.
- Ultra-sleek and easy clean design.
- Raised height (480 mm to top of seat).
- Extended 700 mm projection.
- Rimless flushing.
- HBN 00-10 Part C compliant ref: WC HD
- Seat not included.
General information
Color | White |
Finish | Smooth |
Material | Vitreous china |
Length | 700 mm |
Width | 365 mm |
Height | 455 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | N13/300 WCs and cisterns N13/10 WC pans and flushing arrangements |
Specification data - WC pans
Form | Back-to-wall, siphonic. |
Pan height | 455 mm. |
Materials | |
Body | Vitreous china to BS 3402. |
Finish and colour | Alpine white. |
Water supply, outlet and seat holes | |
Water supply | Back inlet. |
Outlet | Horizontal back outlet. |
Integral accessories | Floor fixing pack. |
Weight | 34 kg. |
Flushing arrangement | CIST101. Guidance for specification option:
CIST102. Guidance for specification option:
CIST103. Guidance for specification option:
CIST104. Guidance for specification option:
CIST105. Guidance for specification option:
|
Accessories | Not required. TSWC115. Guidance for specification option: Convert to P trap connection. CHWC112. Guidance for specification option: Chartham seat only – White. CHWC113. Guidance for specification option: Chartham seat only – Blue. CHWC114. Guidance for specification option: Chartham seat only – Dark Grey. |
Literature
Bushboard Washrooms Brochure
Healthcare Brochure
Washroom Design and Specification CPD Synopsis
Washrooms for Education Brochure
Specifying Healthcare Sanitary Assemblies CPD Synopsis
