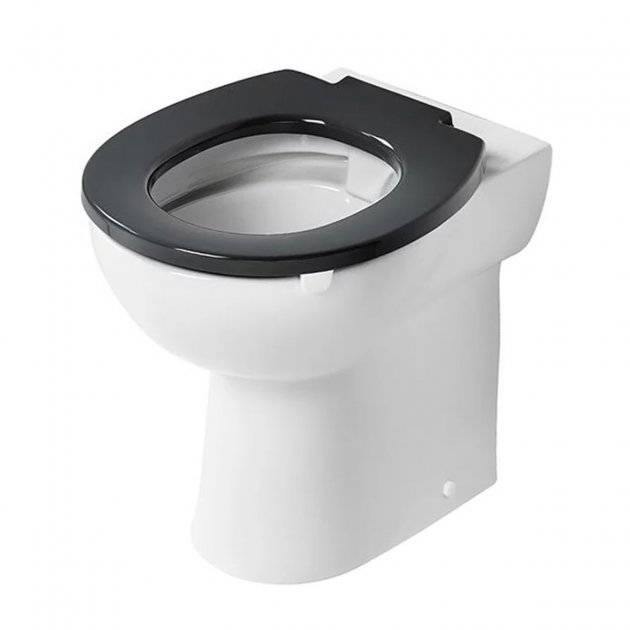

Contour 21 BTW Pan Raised Height
Verified by manufacturer 5 months ago
Doc M and HBN compliant rimless back-to-wall toilet.
Application
Suitable for extra wide enlarged WC cubicles for ambulant disabled, people with babies or small children and/or people with large bags/luggage. For commercial, education, healthcare and leisure settings.
Description
Armitage Shanks Contour 21+ rimless raised height back-to-wall rimless toilet bowl with raised horizontal outlet and anti-microbial glaze.
Features and benefits:
- Rimless toilet bowl.
- Horizontal outlet.
- Anti-microbial glaze.
- Water-efficient.
- WC Pan screwed to floor using concealed brackets (supplied).
- Doc M compliant WC.
- HBN 00-10 Part C compliant ref: WC H healthcare toilet.
General information
Color | White |
Finish | Anti-microbial |
Material | Vitreous china |
Shape | Other |
Length | 525 mm |
Height | 450 mm |
Uniclass | |
CAWS | N13/302 WCs and flushing valves N13/10 WC pans and flushing arrangements |
Specification data - WC pans
Standard | To BS EN 997. |
Form | Back-to-wall. |
Connecting dimensions | To BS EN 33. |
Pan height | 450 mm. |
Materials | |
Body | Vitreous china. |
Finish and colour | White. |
Water supply, outlet and seat holes | |
Outlet | Horizontal back outlet. |
Seat holes | Standard pattern. |
Integral accessories | Not required.R0158 - ProSys electronic conversion kit.Guidance for specification option: For proximity actuated flushplates (Altes & Symfo) (120 depth frames and cisterns only). R0099 - ProSys electronic conversion kit.Guidance for specification option: For infra-red actuated flushplates (Septa Pro E1 & E2) (120 depth frames and cisterns only). R0137 - Septa Pro inspection plate white.S3643 - Conceala 2 4.5/3 or 4/2.6 litre cistern.Guidance for specification option: Dual flush valve, side supply, internal overflow, alternative height plastic flushbends, no flushplate/ button. S3640 - Conceala 2 4.5 litre cistern.Guidance for specification option: Single flush valve, side supply, internal overflow and alternative height plastic flushbends. R0317 - ProSys 120 depth WC cistern, mechanical, front actuation.R0318 - ProSys 120 depth WC cistern, pneumatic, front actuation.S4065 - Contour 21 toilet seat and coverGuidance for specification option: Top fixing hinges. E4463 - Karisma flush plate.Guidance for specification option: Dual flush, unbranded for Conceala 2 cisterns. S4513 - Palm push button.Guidance for specification option: Pneumatic, stainless steel for 31 mm maximum thickness partition. S0767 - Oleas M2 mechanical dual flushplate - White.S0857 - Oleas P2 pneumatic dual flushplate - Chrome.S0858 - Septa Pro M1 mechanical metal dual flushplate.S0859 - Septa Pro M2 mechanical metal single flushplate.S0775 - Septa Pro P1 pneumatic metal dual flushplate.S0860 - Septa Pro P2 pneumatic metal dual small flushplate.S0776 - Speta Pro P3 pneumatic metal single small flushplate.R0136 - Septa Pro P4 pneumatic dual small flushplate with raised adjustable buttons.P0109 - Septa Pro XS pneumatic push button no logo - Chrome.S0772 - Septa Pro E1 electronic (infrared) & manual metal dual flushplate.S0773 - Septa Pro E2 electronic (infrared) metal dual flushplate.R0130 - Altes NT1 electronic (proximity) ceramic dual flushplate. |
Projection | 525 mm. |
Weight | 22.70 kg. |
