Chartham Rimless 750 Projection Back to Wall WC
Verified by manufacturer 5 months ago
Rimless back to wall, raised height Doc M, 750 mm projection WC pan with horizontal outlet.
Application
Suitable for all sectors.
Description

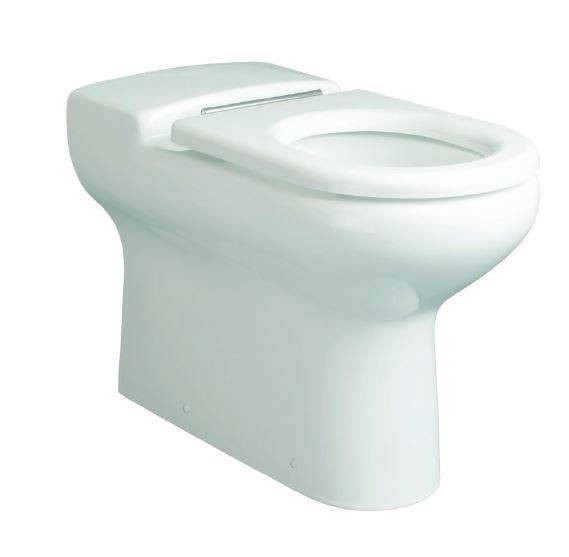

SanCeram Chartham Rimless back to wall, raised height, 750 mm projection WC pan with horizontal outlet.
Features and benefits:
- Sleek, easy clean design.
- Raised height (480 mm to seat top)
- Extended 750 mm projection.
- Rimless flushing.
- Doc M compliant.
- Manufactured from high quality vitreous china to BS 3402.
- Seat not included.
General information
Color | White Guidance for specification option: Alpine white. |
Finish | Smooth Guidance for specification option: Alpine white. |
Material | Vitreous china Guidance for specification option: To BS 3402. |
Length | 750 mm |
Width | 365 mm |
Height | 455 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | N13/10 WC pans and flushing arrangements N13/300 WCs and cisterns |
Specification data - WC pans
Form | Back-to-wall, rimless, washdown. |
Pan height | 455 mm. |
Materials | |
Body | Vitreous china to BS 3402. |
Finish and colour | Alpine white. |
Water supply, outlet and seat holes | |
Outlet | TSWC115: Convert to P trap. |
Seat holes | Standard pattern.Guidance for specification option: 155 mm centres, 455 mm back. |
Flushing arrangement | CIST101. Guidance for specification option: Standard use: Mirage concealed dual flush lever cistern. CIST102. Guidance for specification option: Doc M Compliance: Mirage concealed dual flush dimple lever cistern. CIST103. Guidance for specification option: Standard use: Miniflo concealed single flush cistern with square button. CIST104. Guidance for specification option: Standard use: Miniflo concealed dual flush cistern with square button. CIST105. Guidance for specification option: Doc M Compliance: Miniflo concealed single flush cistern with palm push button. |
Seat design | CHWC112. Guidance for specification option: Chartham seat only – White. CHWC113. Guidance for specification option: Chartham seat only – Blue. CHWC114. Guidance for specification option: Chartham seat only – Dark Grey. |
Fixings | Floor fixing pack. Guidance for specification option: Supplied. |
Weight | 34 kg. |

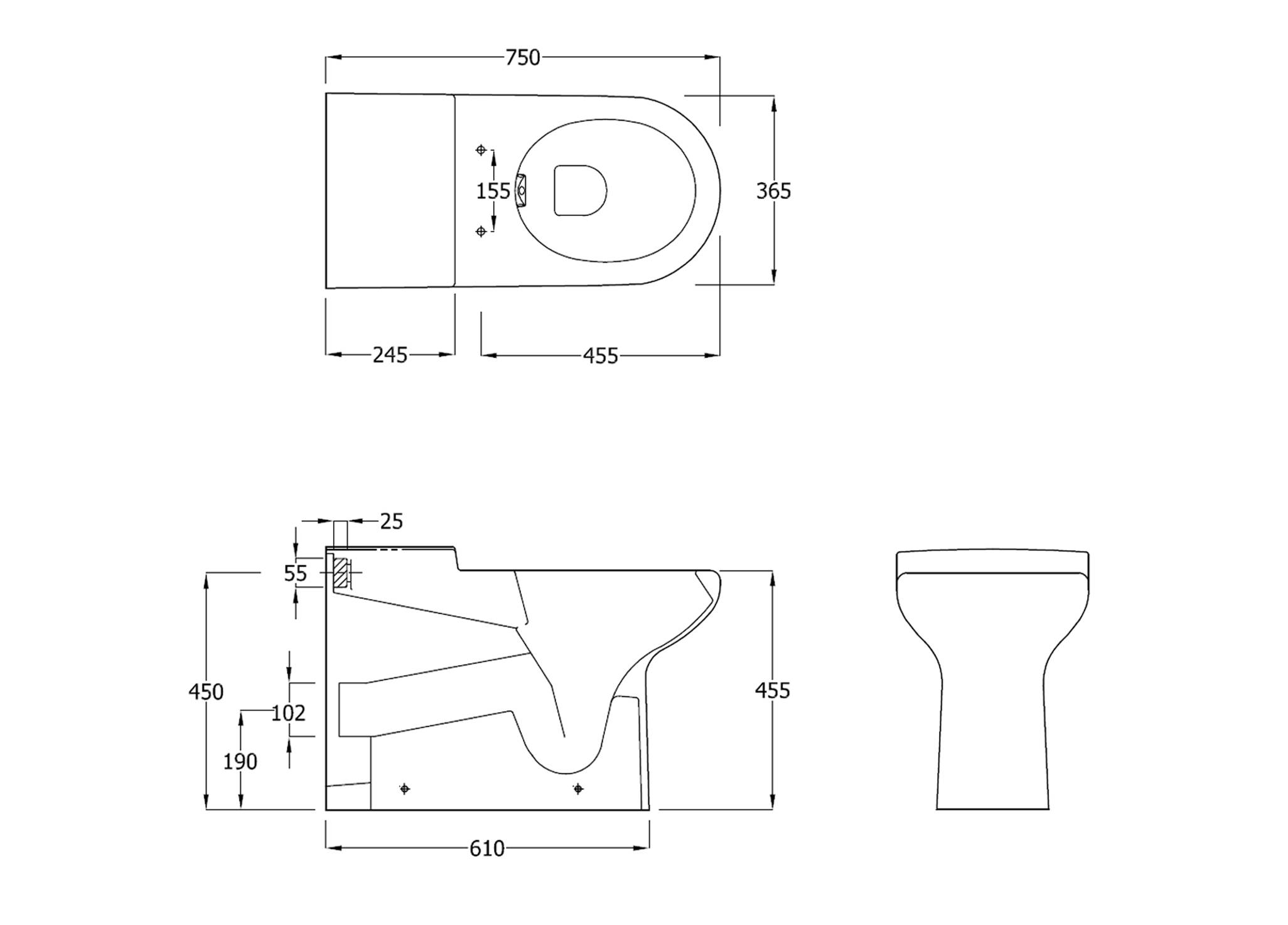

Size: | 365 x 750 x 455 mm. Guidance for specification option: W x D x H. |
Sustainability data
Material | Vitreous china Guidance for specification option: To BS 3402. |
