Application

Suitable for commercial, leisure, education, hotels and luxury washrooms.

Description

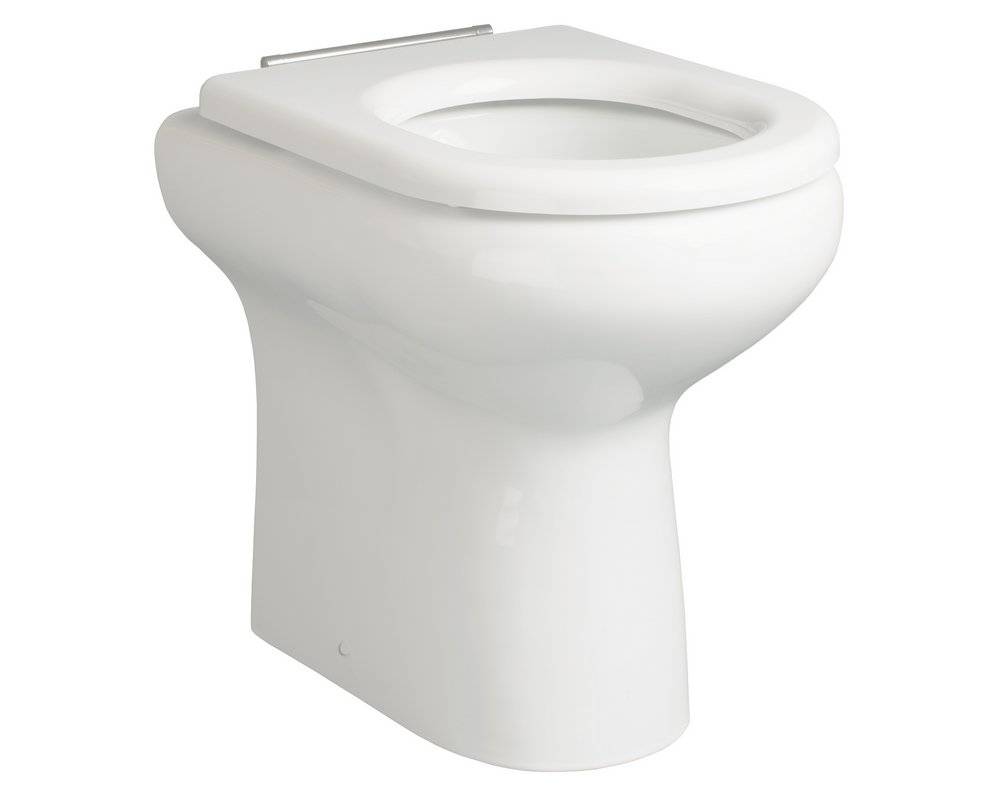

SanCeram Chartham back to wall comfort height WC pan with horizontal outlet.


Features and benefits:

  • Part of the Chartham range.
  • Ultra-sleek and easy clean design.
  • Comfort height (450 mm to top of seat).
  • Standard projection.
  • Rimless flushing providing a silent flush using less water.
  • WRAS approved.

General information

Color

White

Finish

Smooth

Material

Vitreous china

Length

520 mm

Width

360 mm

Height

425 mm

Warranty description

25 year

Uniclass

Pr_40_20_93_94 WC pansPrimary

CAWS

N13/300 WCs and cisterns

N13/10 WC pans and flushing arrangements

Specification data - WC pans

Form

Back-to-wall, siphonic.

Pan height

425 mm.

Materials

-

Body

Vitreous china to BS 3402.

Finish and colour

Alpine white.

Water supply, outlet and seat holes

-

Water supply

Back inlet.

Outlet

Horizontal back outlet.

Integral accessories

Floor fixing pack.

Weight

25 kg.

Flushing arrangement

CIST101.

Guidance for specification option:

Mirage concealed dual flush lever cistern.

CIST102.

Guidance for specification option:

Mirage concealed dual flush dimple lever cistern.

CIST103.

Guidance for specification option:

Miniflo concealed single flush cistern with square button.

CIST104.

Guidance for specification option:

Miniflo concealed dual flush cistern with square button.

CIST105.

Guidance for specification option:

Miniflo concealed single flush cistern with palm push button.

Show more

Accessories

Not required.

TSWC115.

Guidance for specification option:

Convert to P trap connection.

CHWC111.

Guidance for specification option:

Chartham soft close seat and cover - White.

CHWC112.

Guidance for specification option:

Chartham seat only – White.

CHWC113.

Guidance for specification option:

Chartham seat only – Blue.

Show more
