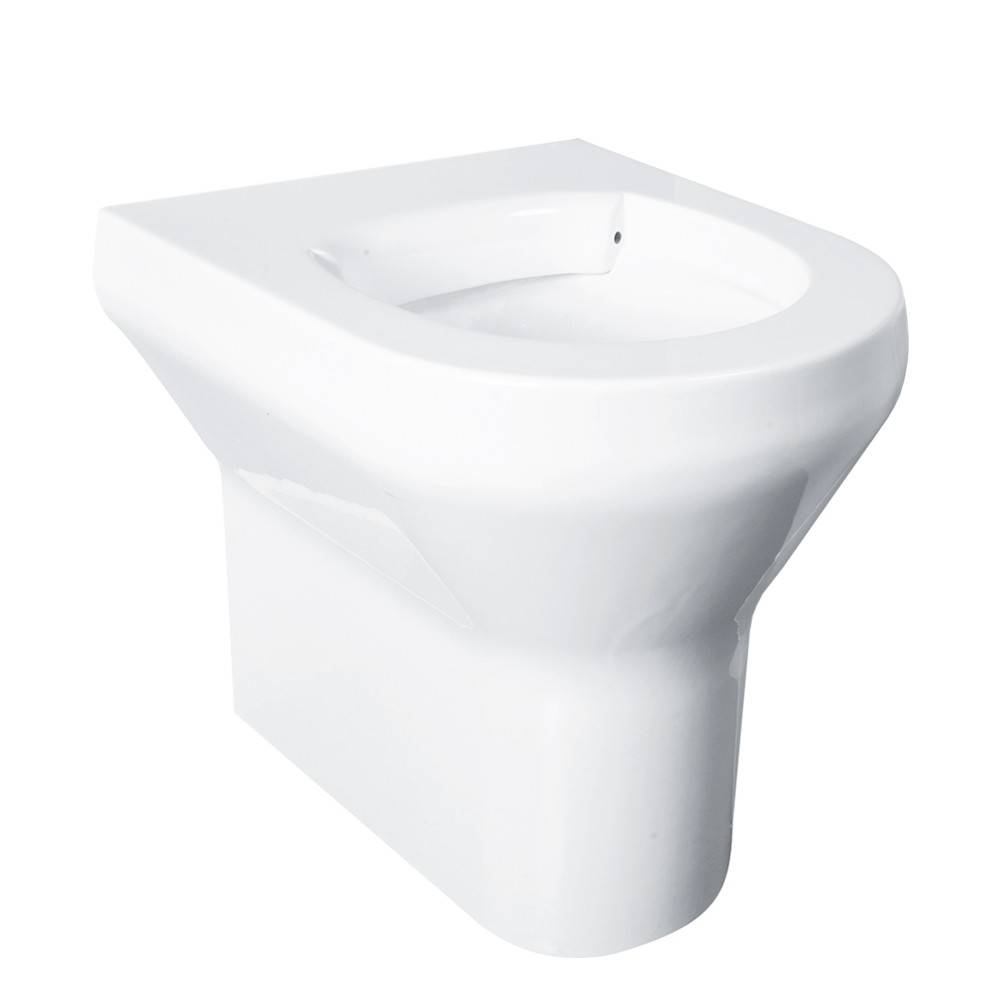

KWC DVS High Security Anti Ligature BTW WC
Verified by manufacturer 5 months ago
HBN 03-01 compliant KWC DVS high security, anti-ligature back-to-wall WC pan designed for safe ensuites.
Application
Suitable for mental health safe ensuites, healthcare and custodial applications.
Description
High security, anti-ligature back-to-wall WC pan with water efficient 4 litre flush.
Features and benefits:
- Domestic aesthetic.
- Hygienic non-porous surface.
- Moulded impact resistant construction.
- Vandal and ligature resistant.
- Available in 2 heights; standard or disabled.
- Water efficient (4 litre flush).
- Large trap to reduce blockages.
- Concealed rear waste outlet.
- Warm to the touch surface, eliminates ‘icy shock’.
- Manufactured from high performance composite material.
- WRAS-approved.
- HBN 03-01 compliant.
General information
Color | White |
Material | Composite |
Shape | Other |
Length | 510 mm |
Width | 400 mm |
Height | 420 mm |
Uniclass | |
CAWS | N13/302 WCs and flushing valves N13/10 WC pans and flushing arrangements |
Specification data - WC pans
Form | Back-to-wall.Guidance for specification option: Through wall (4 x 12 mm Stainless Steel allthread studding included). |
Pan height | 420 mm. |
Materials | |
Body | High performance composite. |
Finish and colour | White. |
Water supply, outlet and seat holes | |
Outlet | Concealed rear waste outlet.Guidance for specification option: Waste outlet: Ø100 mm. |
Seat holes | None, integral seating rim. |
Integral accessories | Fixing kit for walls up to 250 mm thick provided as standard. |
Flush volume | 4 L. Guidance for specification option: Flush inlet: Ø55 mm. Manufacturer guidanceSingle flush volume. |
Weight | 16.8 kg. Manufacturer guidanceGross weight. |
