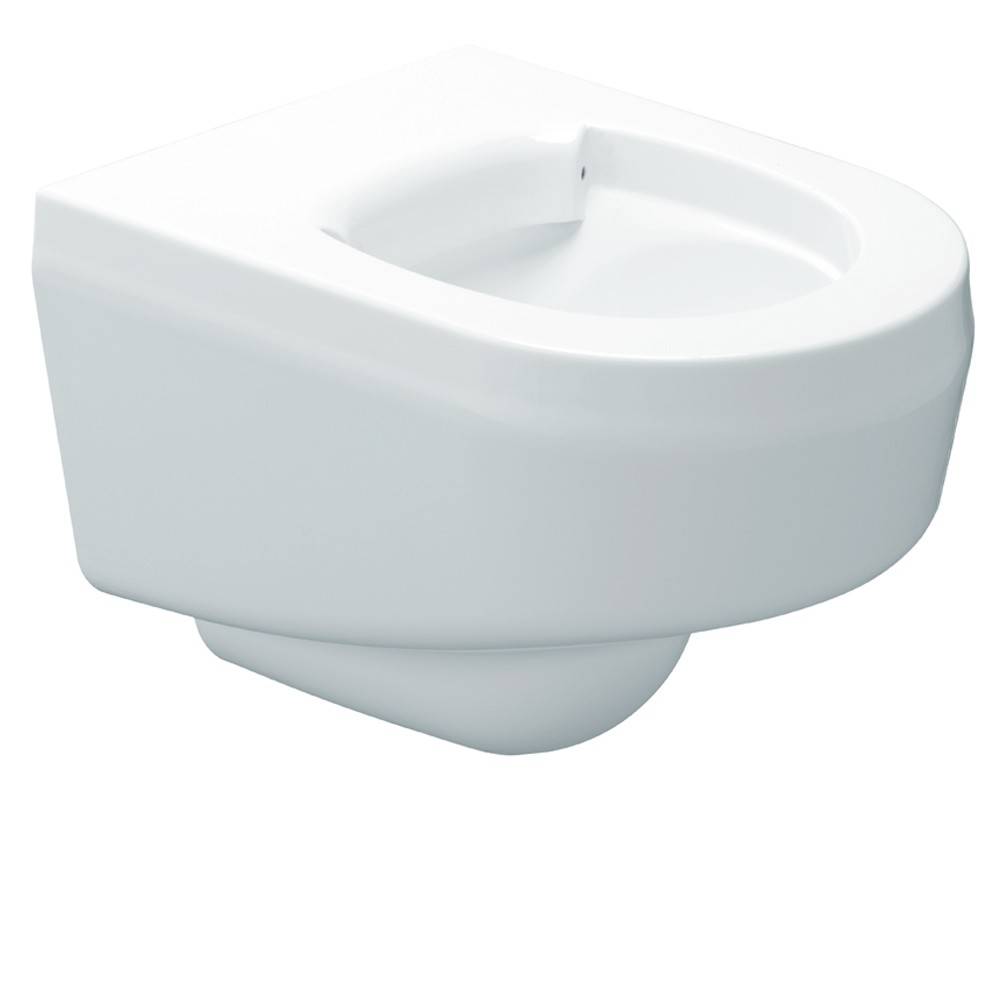

KWC DVS High Security Anti Ligature V2 Wall Hung WC

Verified by manufacturer 5 months ago

Bushboard Washroom Systems Ltd

HBN 03-01 compliant high security, anti ligature wall hung WC pan designed for safe ensuites.

Jump to:
+44 (0)1536 533620 Website

Application

Suitable for mental health safe ensuites, healthcare and custodial applications.

Description

High security wall hung WC Pan with water efficient 4 litre flush.


Features and benefits:

  • Domestic aesthetic.
  • Hygienic non-porous surface.
  • Moulded impact resistant construction.
  • Vandal and ligature resistant.
  • Available in 2 heights; standard or disabled.
  • Water efficient (4 litre flush).
  • Large trap to reduce blockages.
  • Concealed rear waste outlet.
  • Warm to the touch surface, eliminates ‘icy shock’.
  • Manufactured from high performance composite material.
  • WRAS-approved.
  • HBN 03-01 compliant.

General information

Color

White

Material

Composite

Shape

Other

Length

510 mm

Width

400 mm

Height

370 mm

Uniclass

Pr_40_20_93_94 WC pansPrimary

CAWS

N13/302 WCs and flushing valves

N13/10 WC pans and flushing arrangements

Specification data - WC pans

Form

Wall-hung.

Guidance for specification option:

Through wall (4 x 12 mm Stainless Steel allthread studding included).

Pan height

370 mm.

Materials

-

Body

High performance composite.

Finish and colour

White.

Water supply, outlet and seat holes

-

Outlet

Concealed rear waste outlet.

Guidance for specification option:

Waste outlet: Ø100 mm.

Seat holes

None, integral seating rim.

Integral accessories

Fixing kit for walls up to 250 mm thick provided as standard.

Flush volume

4 L.

Guidance for specification option:

Flush inlet: Ø55 mm.

Manufacturer guidance

Single flush volume.

Weight

14.7 kg.

Manufacturer guidance

Gross weight.

Literature

Healthcare Brochure

Healthcare Brochure

Specifying Healthcare Sanitary Assemblies CPD Synopsis

Specifying Healthcare Sanitary Assemblies CPD Synopsis
