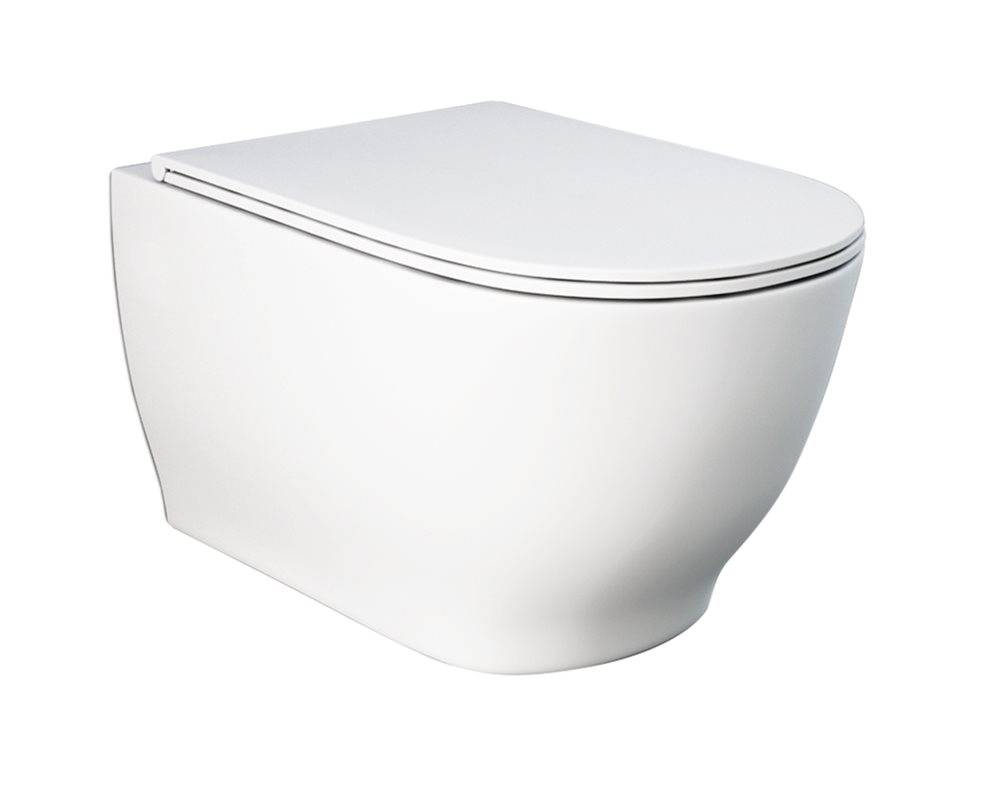

Langley Curve Wall Mounted WC
Verified by manufacturer 6 months ago
Luxury curved wall hung WC pan.
Application
Suitable for mid to high end commercial and hotel washrooms.
Description
SanCeram Langley Curve rimless wall hung WC pan with hidden fixations, standard projection and horizontal outlet.
Features and benefits:
- Part of the Langley range.
- Modern design.
- Standard projection.
- Rimless flushing.
- Hidden fixations allow one-man installation and time saving on site.
General information
Color | White |
Material | Vitreous china |
Length | 560 mm |
Width | 360 mm |
Height | 430 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | N13/300 WCs and cisterns N13/10 WC pans and flushing arrangements |
Specification data - WC pans
Form | Wall-mounted, siphonic. |
Pan height | 430 mm. |
Materials | |
Body | Vitreous china to BS 3402. |
Finish and colour | Alpine white. |
Water supply, outlet and seat holes | |
Water supply | Back inlet. |
Outlet | Horizontal back outlet. |
Weight | 29 kg. |
Flushing arrangement | CIST101. Guidance for specification option: Mirage concealed dual flush lever cistern. CIST102. Guidance for specification option: Mirage concealed dual flush dimple lever cistern. CIST103. Guidance for specification option: Miniflo concealed single flush cistern with square button. CIST104. Guidance for specification option: Miniflo concealed dual flush cistern with square button. CIST105. Guidance for specification option: Miniflo concealed single flush cistern with palm push button. |
Accessories | Not required. TSWC117. Guidance for specification option: Support brackets and fixings for wall hung pans (not required if using CIST112). LLWC124. Guidance for specification option: Langley Curve slim soft close seat and cover. TSWC115. Guidance for specification option: Convert to P trap connection. |
Sustainability data
Material | Vitreous china |
