The Sanidor Inox range is the ultimate option of high-performance stainless steel hinge doors for clean and sterile environments in hygiene-critical areas.
Application
- Laboratories.
- Clean rooms.
- Pharmaceutical factories.
- Medical environments.
- Hospitals.
Description
The door panel is a unique monobloc design, constructed from a high-grade steel envelope and injected with a high-density foam core. This offers exceptional rigidity and insulation.
All joints are fully welded to prevent ingress of bacteria or fluids inside the leaf. The frames are typically fabricated from stainless steel and can be constructed with a wrap-around design to create a hygienic reveal detail. Available with one or two hinged leaves, these doors can be finished in brushed stainless steel, or a variety of paint colours.
The door leaves can be a solid construction, or include a range of vision windows for improved health and safety. Available in a range of shapes, the vision windows are a flush finish, enabling a simple and effective wash down process.
With a wide range of ironmongery and automation options available, this range of high performance hinged doors are designed to suit bespoke customer requirements.
Features and benefits:
- Robust construction for high-use doorways.
- Hygienic door construction.
- Range of finishes available.
- Superior hygiene barrier.
General information
Finish | Painted Galvanized |
Material | Steel |
Shape | Rectangle Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | L20/55 Doorsets L20/480 Doorsets |
Specification data - Carbon steel doorsets
Standard | To BS EN 13241. |
Configuration | Single-leaf, single-action.Guidance for specification option: Standard. Double-leaf, single-action.Guidance for specification option: Optional. |
Doorset size | Manufacturer guidanceSize (w x h): 2500 x 2500 mm. Larger sizes available on request. Insert requirements. |
Frame | |
Material | Zinc coated steel. |
Perimeter seals or inserts | Specialist double component silicone gasket installed in a plastic profile. |
Finish | |
Coating | Painted. |
Colour | Manufacturer guidancePainted to standard range of RAL colours. Insert requirements. |
Door leaf | |
Thickness | Fully welded (42 mm thick) steel leaf. |
Core | Injected with a CFC-free polyurethane foam. |
Material | Zinc coated steel. |
Glazing | |
Type | Flush pharma style window 500 mm diameter circular and glazed with double safety glass.Guidance for specification option: Standard 400 mm diameter circular.Guidance for specification option: Optional Rectangular 250 x 500 mm.Guidance for specification option: Optional Rectangular 400 x 600 mm.Guidance for specification option: Optional Rectangular 450 x 300 mmGuidance for specification option: Optional |
Finish | |
Coating | Painted. |
External colour | Manufacturer guidancePainted to standard range of RAL colours. Insert requirements. |
Internal colour | As External. |
Hardware | Standard stainless steel hinges.Guidance for specification option: Standard Stainless steel 'drop hinges'.Guidance for specification option: Optional Stainless steel handles with a key lock.Guidance for specification option: Standard Stainless steel kickplates.Guidance for specification option: Optional Roll-lock with pull handle.Guidance for specification option: Optional Door Closer.Guidance for specification option: Optional Electro-lock.Guidance for specification option: Optional |
Activation | Manual operation. Guidance for specification option: Standard Push button. Guidance for specification option: Optional Elbow activators. Guidance for specification option: Optional Motion sensors. Guidance for specification option: Optional Knee switches. Guidance for specification option: Optional |
Sustainability data
Material | Steel |
Third party certifications
Alcumus SafeContractor
Safe Contractor Certificate
ISO 9001 Quality Management
ISO 9001
Constructionline Gold
Constructionline Gold Certificate
CHAS
CHAS Certificate
Literature

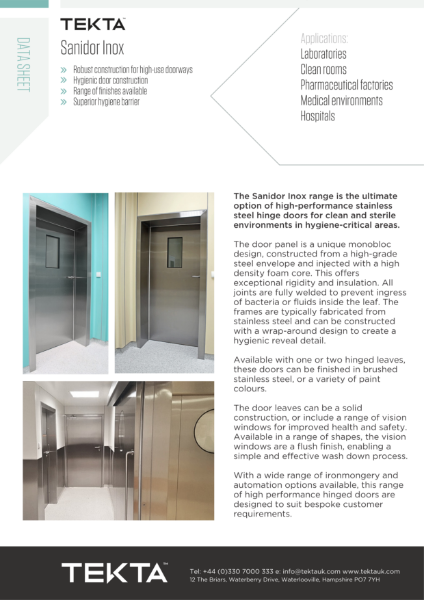

Sanidor Inox Datasheet
