Traffidor Inox - Insulated Monobloc Hinged Wash-down Doors (Powder coated)

Verified by manufacturer 5 months ago

Tekta UK Third party certifications:
  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • CHAS

    CHAS

    Certificate type

The Traffidor Inox range is the ultimate option of high-performance hinge doors for hygiene-critical zones and wash-down areas in food factories.

Jump to:
+ (44) 0330 7000 333 Website

Application

  • Food factories.
  • Processing areas.
  • High-care zones.
  • Wash-down areas.
  • Production zones.

Description

The door panel is a unique monobloc design, constructed from a high-grade steel envelope and injected with a high density foam core. This offers exceptional rigidity and insulation.


All joints are fully welded to prevent ingress of bacteria or fluids inside the leaf, making the door suitable for wash-down areas. The frames are typically fabricated from stainless steel and can be constructed with a wrap-around design to create a hygienic reveal detail. Available with one or two hinged leaves, these doors can be finished in a variety of paint colours.


The door leaves can be a solid construction, or include a range of vision windows for improved health and safety. Available in a range of shapes, the vision windows are a flush finish, enabling a simple and effective wash down process.


With a wide range of ironmongery and automation options available, this range of high performance hinged doors are designed to suit bespoke customer requirements.


Features and benefits:

  • Monobloc fully-sealed leaf for ultimate hygiene.
  • Range of corrosion-resistant finishes.
  • Quality, durable construction.
  • Wide range of ironmongery available.

General information

Finish

Painted

Galvanized

Material

Steel

Shape

Rectangle

Square

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_24_52 Carbon steel doorsetsPrimary

CAWS

L20/55 Doorsets

L20/480 Doorsets

Specification data - Carbon steel doorsets

Configuration

Single-leaf, single-action.

Guidance for specification option:

Standard.

Double-leaf, single-action.

Guidance for specification option:

Optional.

Doorset size

-

Manufacturer guidance

Size (w x h): 2500 x 2500 mm. Larger sizes available on request. Insert requirements.

Frame

-

Material

Zinc coated steel.

Perimeter seals or inserts

Specialist double component silicone gasket installed in a plastic profile.

Finish

-

Coating

Painted.

Colour

-

Manufacturer guidance

Painted to standard range of RAL colours. Insert requirements.

Door leaf

-

Thickness

Fully welded (40 mm thick) steel leaf.

Core

Injected with a CFC-free polyurethane foam.

Material

Zinc coated steel.

Glazing

-

Type

Rectangular, flush finish, double glazed vision windows, suitable for wash-down environments.

Manufacturer guidance

Alternative vision window shapes available on request.

Finish

-

Coating

Painted.

External colour

-

Manufacturer guidance

Painted to standard range of RAL colours. Insert requirements.

Internal colour

As External.

Hardware

Standard stainless steel hinges.

Guidance for specification option:

Standard


Stainless steel 'drop hinges'.

Guidance for specification option:

Optional

Stainless steel handles with a key lock.

Guidance for specification option:

Standard

Stainless steel kickplates.

Guidance for specification option:

Optional

Emergency escape 'panic' hardware.

Guidance for specification option:

Optional

Roller locks.

Guidance for specification option:

Optional

Electric locks.

Guidance for specification option:

Optional

Activation

Manual operation.

Guidance for specification option:

Standard

Sustainability data

Material

Steel

Third party certifications

Third party certifications

Alcumus SafeContractor

Alcumus SafeContractor

Safe Contractor Certificate

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001

Constructionline Gold

Constructionline Gold

Constructionline Gold Certificate

CHAS

CHAS

CHAS Certificate

Literature

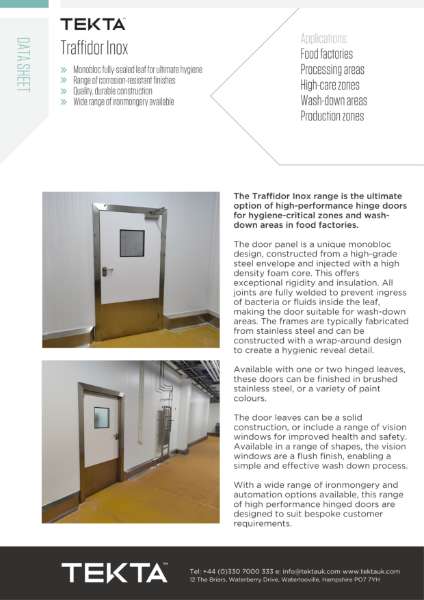

Traffidor Inox Datasheet

Traffidor Inox Datasheet
