Thermidor Freeze HD - Insulated hinged monobloc freezer doors

Verified by manufacturer 5 months ago

Tekta UK Third party certifications:
  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • CHAS

    CHAS

    Certificate type

The Thermidor Freeze HD is a specialist hinged freezer door, designed to provide superior insulation performance for openings that separate areas with large temperature differences.

Jump to:
+ (44) 0330 7000 333 Website

Application

  • Blast Freezers.
  • Storage Freezers.
  • Food Factories.
  • Pharmaceutical Factories.

Description

This door range offers a simple and reliable operation and is available with a range of ironmongery to suit site requirements.


With options of different panel thicknesses, high quality rubber seals and optional heated frames / thresholds, this door range is designed to reduce costs and improve safety by optimizing insulation and preventing ice build-up in a variety of applications.


Available with a range of hygienic finishes, including stainless steel, brushed stainless steel and powder-coating, the door is suitable for use in food factories, including wash-down areas.


The door panel is a monobloc design with a welded steel envelope and injected foam core. This offers exceptional stability and insulation performance, with no cold bridges. The fully welded and seamless finish is far superior to alternative designs that use a two part leaf design where water can freeze in the joints damaging the leaf over time.


Features and benefits:

  • Superior insulation performance.
  • High quality perimeter seals.
  • Safe and reliable operation.
  • Monobloc door leaf design.

General information

Color

White

Silver

Finish

Powder-coated

Stainless steel

Material

Steel

Guidance for specification option:

zinc coated galvanized 0.75 mm.


Shape

Square

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_24_52 Carbon steel doorsetsPrimary

CAWS

L20/55 Doorsets

L20/480 Doorsets

Specification data - Carbon steel doorsets

Configuration

Single-leaf, single-action.

Manufacturer guidance

Structural opening dimensions and number of leaves as per door.

Doorset size

-

Manufacturer guidance

Size (w x h): 3000 x 3000 mm. Other sizes available on request. Insert requirements.

Frame

-

Material

0.75 mm zinc coated galvanized steel. Complete with heater element and thermostat to prevent ice build-up.

Perimeter seals or inserts

Two-part rubber seal situated between the door frame and leaf to eliminate thermal bridging.

Finish

-

Coating

Powder coated.

Door leaf

-

Thickness

100 mm.

120 mm.

150 mm.

Core

Fully welded steel leaf, injected with a CFC-free polyurethane foam.

Material

0.75 mm zinc coated galvanized steel.

Finish

-

Coating

Powder-coated.

Hardware

Slam lock and pull handle.

Guidance for specification option:

Standard.


Rod control system.

Guidance for specification option:

Optional, available for larger door sizes.

Specialist drop hinge system for superior threshold sealing.

Accessories

Internal emergency escape activation.

Activation

Manual operation.

Automatic closing via a heavy duty industrial door closer.

Sustainability data

Material

Steel

Guidance for specification option:

zinc coated galvanized 0.75 mm.


Third party certifications

Alcumus SafeContractor

Alcumus SafeContractor

Safe Contractor Certificate

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

Constructionline Gold

Constructionline Gold

Constructionline Gold Certificate

CHAS

CHAS

CHAS Certificate

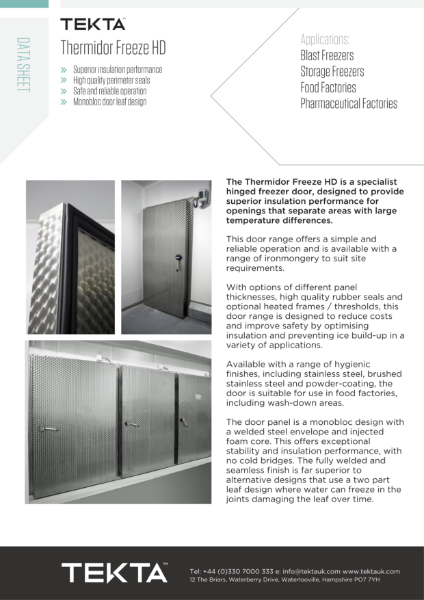

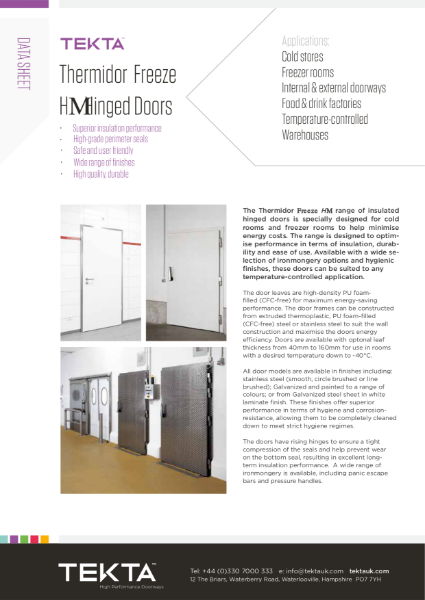

Literature
