Traffidor Pass - Steel Hinged Hygiene Doors (Powder coated)

Name: Traffidor Pass - Steel Hinged Hygiene Doors (Powder coated)
Brand: Tekta UK
SKU: nCqDF7iGiKKabeZ6wSTSNk

Verified by manufacturer 6 months ago

Tekta UK

Third party certifications:

Alcumus SafeContractor
Certificate type
ISO 9001 Quality Management
Certificate type
Constructionline Gold
Certificate type
CHAS
Certificate type

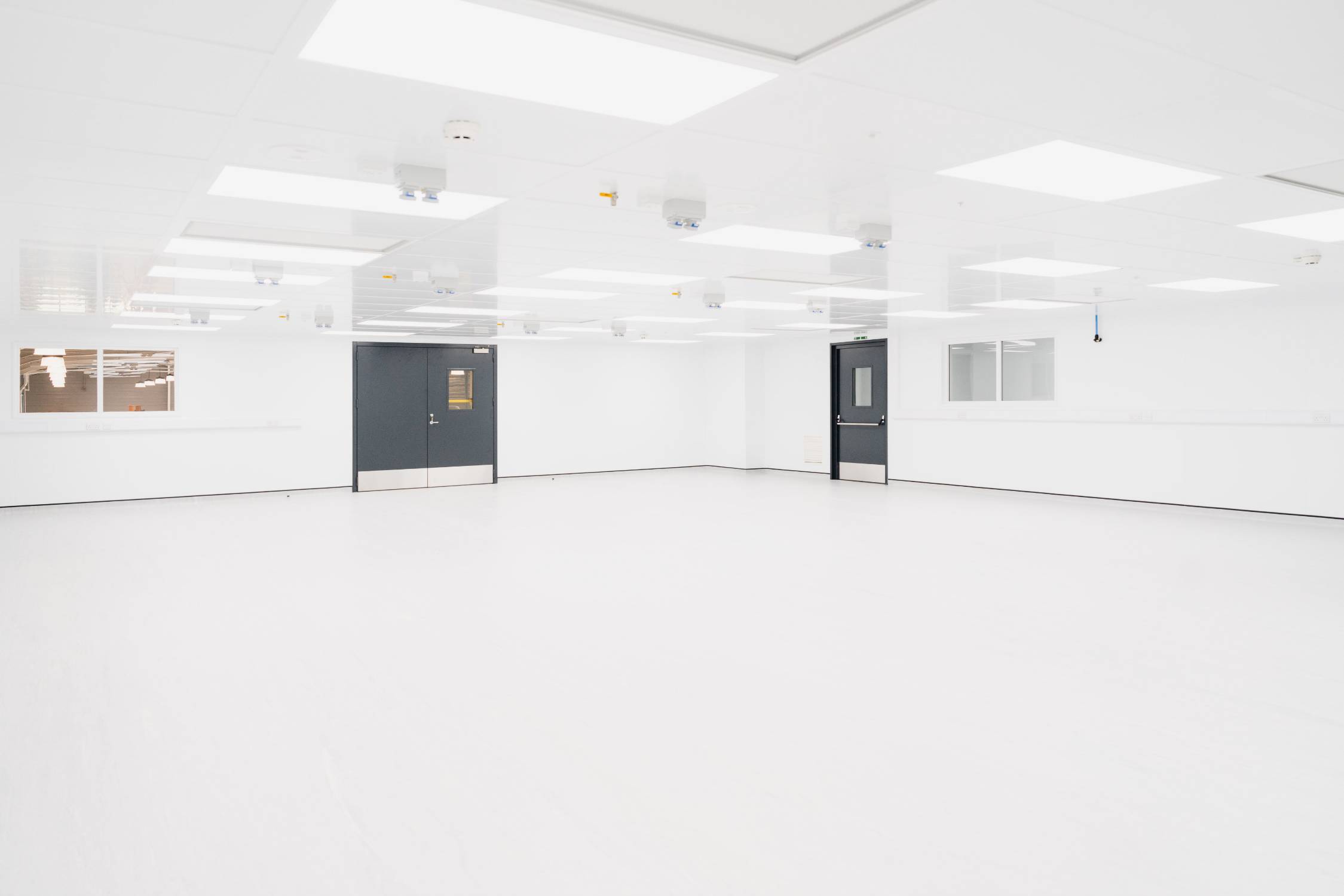

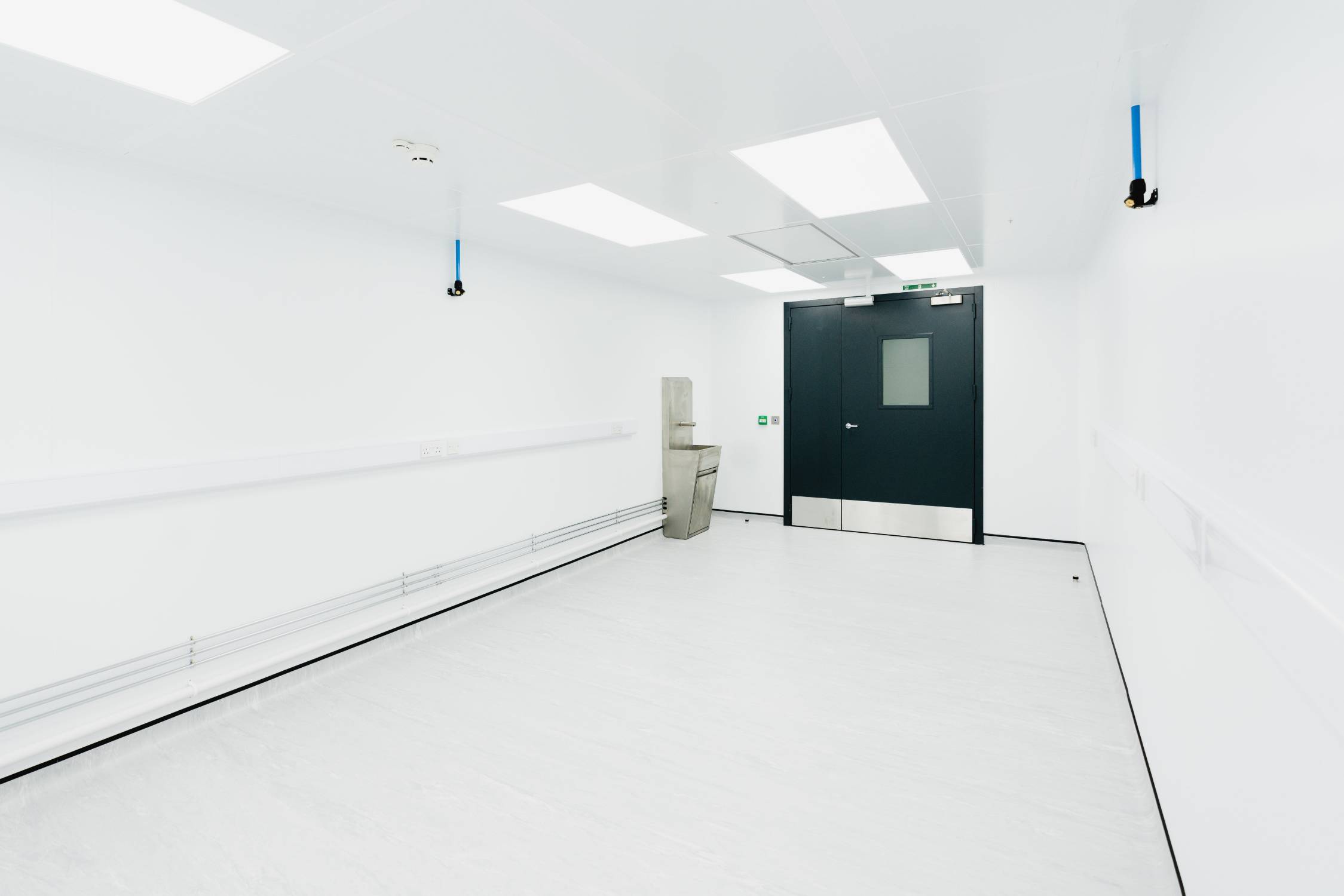

The Traffidor Pass door is an advanced hinged door range that offers an unparalleled combination of features for a wide range of applications.

Jump to:

+ (44) 0330 7000 333 Website

Application

Food factories.
Hygiene areas.
Airtight zones.
Fire walls.
Manufacturing facilities.

Description

Constructed from galvanized steel and finished with a durable powder coating (to any RAL colour), this door range provides a durable construction that requires minimal maintenance. Specialist corrosion grade construction are also available up to C5 grade.

It has a wide range of ironmongery and vision windows available to suit all applications, offering flexibility in design and has been tested for durability of up to a million cycles. The door offers excellent insulation due to its highly insulated core, making it an energy-efficient choice.

Optional fire protection is available, with fire sealing strips mounted on the door leaf and an EPDM smoke seal mounted on the frame. The door is fire-rated for internal and external doorways and certified according to EN-16034-1.

It has been fire-tested for installation into mineral wool sandwich panel walls in addition to standard rigid and flexible firewall types.

Features and benefits:

Up to 120 minute fire rating available.
Wide range of ironmongery.
Highly insulated and durable construction.

General information

Color	Silver Other Guidance for specification option: Powder-coated to any RAL colour.
Finish	Galvanized Powder-coated
Material	Steel Polyurethane
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	One year

Uniclass	Pr_30_59_24_52 Carbon steel doorsetsPrimary
CAWS	L20/55 Doorsets L20/480 Doorsets

Specification data - Carbon steel doorsets

Standard	To EN 16034-1.
Doorset size	- Manufacturer guidance Standard: - Width: Single door: 580–1430 mm. Double door: 780–980 mm. - Height: Single and double doors: 1590–3990 mm. Optional: - Width: Single door: 580–1350 mm. Double door: 1040–2392 mm. - Height: Single door: 1592–2737 mm. Double door: 1642–2518 mm.
Performance	-
Fire resistance	-
Integrity	EI30. EI60. EI120. Guidance for specification option: Optional.
Insulation	As Integrity.
Smoke leakage	Sa and S200 Smoke seal.
Acoustic performance	Up to 45 dB.
Thermal	- Manufacturer guidance U-value: 0.8 - 1.6 W/m².K. (Optionally 0.78 - 1.1 W/m².K).
Frame	-
Material	Galvanized steel, 100 mm rebated frame. Galvanized steel, Wrap-around frame.
Finish	-
Coating	Powder-coated, RAL. Guidance for specification option: Powder-coated finish in any standard RAL colour.
Door leaf	-
Thickness	62 mm thick reinforced monoblocdoor leaf constructed Guidance for specification option: Standard 98 mm thick reinforced monobloc door leaf constructed Guidance for specification option: Optional
Core	Solid core formed from specialist insulating materials.
Glazing	-
Type	- Manufacturer guidance Wide range of bespoke vision panel sizes available up to 1500 x 800 mm for fire rated vision panels. Insert requirements.
Finish	-
Internal colour	As External.
Hardware	Level handles. Door closers. Kickplates. Panic hardware. Latch. Manufacturer guidance Wide range of ironmongery available including level handles, door closers, kickplates, panic hardware. (Fire doors to include a compulsory latch).

Supporting structure	Flexible. Mineral wool core sandwich panels 120 mm thick. Guidance for specification option: Optional. Rigid. Manufacturer guidance Fire tested supporting structure.
Air permeability	Class 4.
SecurityRating	Up to RC3. Up to RC4.
Corrosion resistance	Up to C5.
Watertightness	Up to class 6A (outward opening).
