Traffidor Secure is a range of specialist steel door sets, designed to offer maximum durability and strength for a wide variety of external and internal applications.
Application
- Warehousing.
- Food factories.
- Manufacturing.
- Plant Rooms.
Description
This range is constructed from galvanized or stainless-steel sheets available with a choice of core material suit the application. The frame is a profiled steel which can be single or double-rebated, or provided as a wrap-around frame for composite walling systems.
Available with a wide selection of vision panels and fire-block louvre panels, these doors are typically finished in a powder coat painted RAL colour. Other options, such as sign writing, are available for bespoke requirements.
The door sets are also available with a wide variety of ironmongery, including push/pull handles, dead-locks, sash-locks, high security and emergency escape. Doors can also be supplied complete with additional protection, such as kick plates.
CE marked, tested and certified to all relevant UK and European standards.
Features and benefits:
- High quality steel construction.
- Tested to relevant British and European standards.
- Fire rated up to four hours.
- Wide range of finishes and ironmongery.
General information
Color | Other Guidance for specification option: Painted to any RAL colour. |
Finish | Powder-coated |
Material | Steel Polyurethane Mineral wool |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | L20/55 Doorsets L20/480 Doorsets |
Specification data - Carbon steel doorsets
Standard | To BS EN 14351-1. Fire doors tested to EN 16034. BS EN 1125 and BS EN 179.Guidance for specification option:
|
Doorset size | Manufacturer guidance
|
Performance | |
Fire resistance | |
Integrity | 30 minutes.60 minutes.120 minutes.240 minutes.None. |
Thermal | Honeycomb core: 3.1, Mineral Wool core: 1.6, Polyurethane core: 1.6 W/m²K. |
Intruder resistance | |
Minimum requirement | Not required.To LPS 1175, SR 4. |
Frame | |
Threshold | DDA compliant 15 mm rebated aluminium threshold.Guidance for specification option: Standard. 5 mm high “drivable” threshold.None. |
Finish | |
Coating | Powder coated, RAL.Guidance for specification option: Powder-coated finish in any standard RAL colour. |
Door leaf | |
Core | Honeycomb.Guidance for specification option: Standard. Mineral Wool.Guidance for specification option: Optional. Polyurethane.Guidance for specification option: Optional. |
Panel details | A reinforced steel leaf constructed from folded 1.2 mm thick galvanized steel.A reinforced steel leaf constructed from folded 1.5 mm thick galvanized steel.Manufacturer guidanceMagnelis steel available on request. |
Material | Carbon steel. |
Glazing | |
Type | Double glazed window.Not applicable. |
Finish | |
Coating | Powder coated, RAL.Guidance for specification option: Powder-coated finish in any standard RAL colour. |
Internal colour | As External. |
Hardware | Push / Pull handle.Deadlock only.Lever handles.Panic bar (with or without external access device). |
Accessories | Louvre panels.Over-panels.Side panels.Specialist finishes. |
Sustainability data
Material | Steel Polyurethane Mineral wool |
Third party certifications
Alcumus SafeContractor
Safe Contractor Certificate
ISO 9001 Quality Management
ISO 9001
Constructionline Gold
Constructionline Gold Certificate
CHAS
CHAS Certificate
Literature

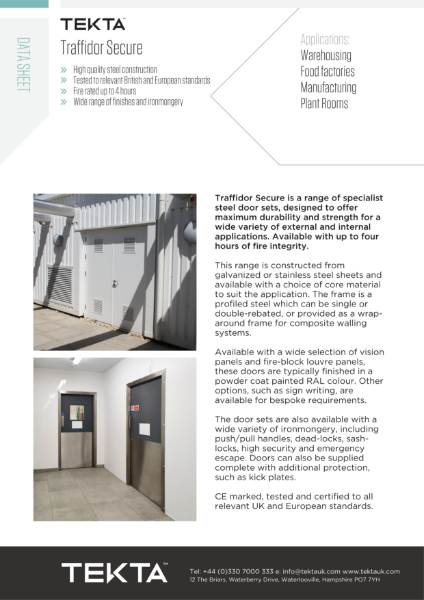

Traffidor Secure - Steel external door - Data sheet
Traffidor Secure Datasheet
