Traffidor Clear - Fully Glazed Steel Door System (Galvanised Steel)

Verified by manufacturer 5 months ago

Tekta UK Third party certifications:
  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • CHAS

    CHAS

    Certificate type

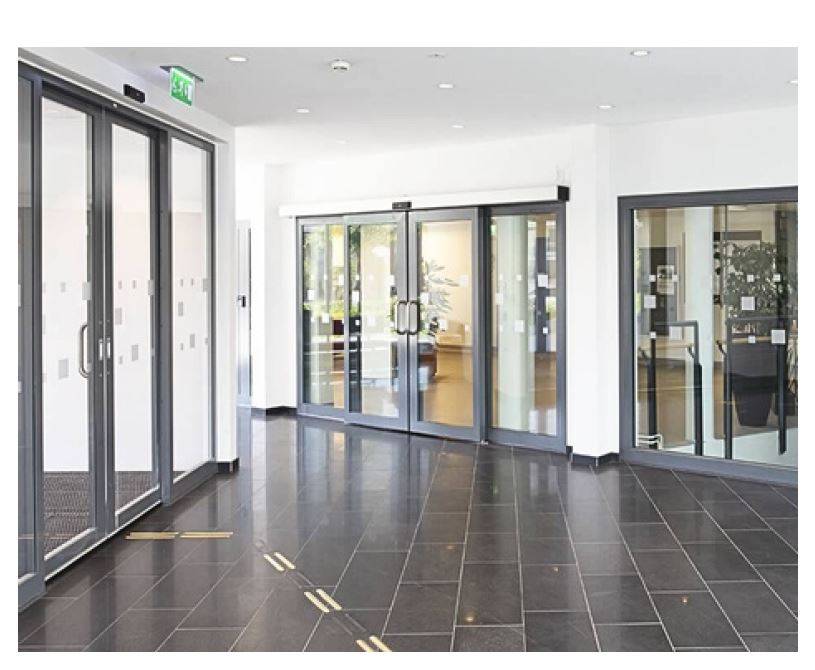

The Traffidor Clear door is designed for use where a fully glazed door is required.

Jump to:
+ (44) 0330 7000 333 Website

Application

  • Food and Hygiene facilities.
  • Cleanrooms.
  • Demanding environments.
  • Airtight zones.
  • Firewalls.

Description

Constructed from a profiled steel frame and inlayed with glazing panels, the door provides a solid and durable construction that requires minimal maintenance.


The door is available with a galvanised or powder coated finish, providing an attractive appearance that is easy to clean for hygienic environments. Fixed side and overpanels can be constructed to match the door where a fully glazed screen is required. It has a wide range of ironmongery and sizes available to suit all applications, offering flexibility in design and functionality.


The door has been tested for durability up to a million cycles and offers excellent insulation values. When required, the Traffidor Clear offers excellent fire protection. The door is fire-rated for internal and external doorways and certified according to EN-16034-1.Security ratings up to RC4 class are also available.


It is available with certification including airtightness, insulation, up to 120-minute fire rating, acoustic ratings, security ratings smoke sealing, and water

tightness.



Features and benefits:

  • Advanced fully glazed door.
  • Up to 120 minute fire rating available.
  • Wide range of ironmongery.
  • Highly durable design.

General information

Color

Other

Guidance for specification option:

Powder-coated to any RAL colour.

Finish

Galvanized

Powder-coated

Material

Steel

Shape

Rectangle

Square

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_24_52 Carbon steel doorsetsPrimary

CAWS

L20/55 Doorsets

L20/480 Doorsets

Specification data - Carbon steel doorsets

Standard

To EN 16034-1.

Doorset size

-

Manufacturer guidance

Varying profile depths and widths available.

Performance

-

Fire resistance

-

Integrity

EI30.

EI60.

EI120.

Guidance for specification option:

Optional.

NFR.

Insulation

As Integrity.

Smoke leakage

Sa and S200 Smoke seal.

Not applicable.

Acoustic performance

Up to 45 dB.

Thermal

-

Manufacturer guidance

U-value: Up to 0.9 w/m²K (dependent on glazing selection).


Frame

-

Material

Rebated profile frame complete with a thermal break.

Finish

-

Coating

Powder-coated.

Guidance for specification option:

Powder-coated finish in any standard RAL colour.

Colour

-

Manufacturer guidance

Powder-coated finish in any standard RAL colour. Insert requirements.

Door leaf

-

Core

Full vision.

Panel details

Steel profile construction.

Material

Carbon steel.

Glazing

-

Type

-

Manufacturer guidance

Wide range of bespoke glazing, including 120 minute fire-rated and acoustic. Insert requirements.

Finish

-

Coating

Powder coated.

External colour

-

Manufacturer guidance

Powder-coated finish in any standard RAL colour. Insert requirements.

Internal colour

As External.

Hardware

Level handles

Door closers

Kick plates.

Latch.

Guidance for specification option:

Fire doors to include a compulsory latch.

Manufacturer guidance

Wide range of ironmongery available including level handles, door closers, kickplates, panic hardware.

Supporting structure

Flexible.

Rigid.

Manufacturer guidance

Fire tested supporting structure.

Air permeability

Class 4.

SecurityRating

Up to RC4.

Watertightness

Up to class 9A (outward opening).

Wind resistance

Up to class C3.

Sustainability data

Material

Steel

Third party certifications

Alcumus SafeContractor

Alcumus SafeContractor

Safe Contractor Certificate

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

Constructionline Gold

Constructionline Gold

Constructionline Gold Certificate

CHAS

CHAS

CHAS Certificate

Literature

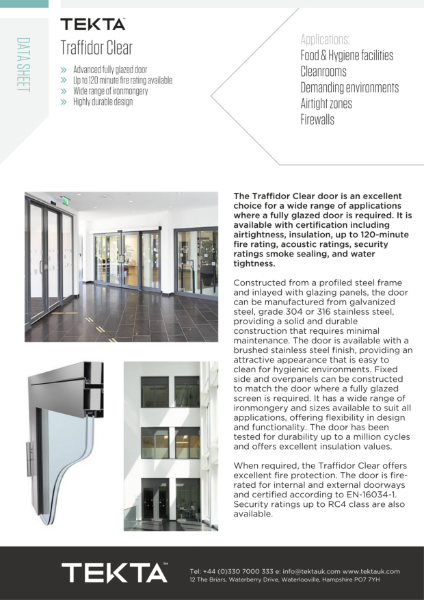

Traffidor Clear Datasheet
