EuroGuard® Combi A1 (SR1) Fencing

Verified by manufacturer 5 months ago

Jacksons Fencing Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

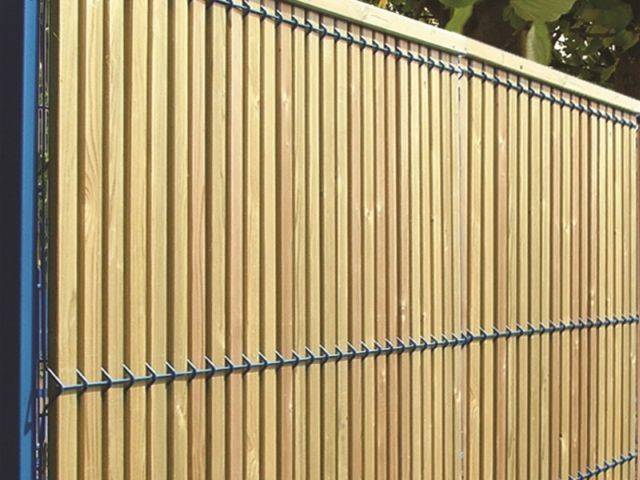

Security-rated welded mesh panel with natural wooden slats.

Jump to:
0800 408 4757 Website

Application

For medium risk areas, commercial premises, educational establishments, perimeters, public spaces and retail sites.

Description

LPS 1175 security-rated welded mesh panel with natural wooden slats with privacy and concealment. Robust welded panels and closely spaced substantial timber slats provide a flat surface with no hand or foot holds and increased privacy.


Features and benefits:

  • LPS 1175 A1 (SR1) approved.
  • Secured by Design preferred specification.
  • Mesh size is 200 x 50 mm.
  • Anti-climb design.
  • Matching A1 gates available.
  • 25-year guarantee on timber and steel.
  • Wire gauge measured before coating.
  • Suited to storage compounds.

General information

Color

Green

Black

Other

White

Yellow

Show more

Finish

Galvanized

Powder-coated

Material

Wood

Metal

Width

3054 mm

Height

2070 mm

2470 mm

3110 mm

Warranty description

25 year

Uniclass

Ss_25_14_61_51 Metal mesh panel fencing systemsPrimary

CAWS

Q40/125 Open mesh steel panel general purpose fencing

Q40/126 Open mesh steel panel security fencing

Q40/27 Open mesh steel panel general purpose fencing

Q40/30 Proprietary fencing

Q40/430 Proprietary fencing

Product range

LPS 1175 Certified Fencing
Mesh Security Fencing

Specification data - Metal mesh panel fencing systems

Category

2.

Guidance for specification option:

Security-rated fencing, privacy fencing, cover from view, screening.

Posts

Manufacturer's standard.

Guidance for specification option:

Dependent on fence height:

  • 2070 or 2470 mm: 80 x 60 mm.
  • 3110 mm: 120 x 60 mm, plus spur post.

Post foundations

Over length set in concrete.

Guidance for specification option:

As standard.

Base plated to bolt down onto concrete.

Cranked to suit wall mounting.

Manufacturer guidance

Post centres: 3034 mm.

Panels

Welded mesh panels, 2070 mm high.

Guidance for specification option:

Overall post length: 2800 mm.

Welded mesh panels, 2470 mm high.

Guidance for specification option:

Overall post length: 3300 mm.

Welded mesh panels, 3110 mm high.

Guidance for specification option:

Overall post length: 4000 mm.

Manufacturer guidance

3000 mm-wide (per panel).

The mesh is 200 x 45 mm and has a 5 mm wire with four reinforcing folds.

Fence topping

Security toppings.

Guidance for specification option:

Consult manufacturer and insert requirements.

Fence spikes.

Guidance for specification option:

Consult manufacturer and insert requirements.

Security comb.

Guidance for specification option:

Consult manufacturer and insert requirements.

System accessories

None.

Matching gates.

Guidance for specification option:

Matching gates, consult manufacturer and insert size/ design requirements.

Worked finish

Zinc alloy-coated.

Guidance for specification option:

Galfan zinc alloy-coated.

Zinc alloy-coated and powder-coated, black RAL 9005.

Guidance for specification option:

To BS EN 13438.

Zinc alloy-coated and powder-coated, green RAL 6005.

Guidance for specification option:

To BS EN 13438.

Zinc alloy-coated and powder-coated, other.

Guidance for specification option:

To BS EN 13438.

Special order, insert requirements.

Marine coated.

Guidance for specification option:

For installations within 500 m of salt water or estuaries.

Manufacturer guidance

Posts and panels to natch unless specified otherwise.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Third party certifications

QA Certificate

QA Certificate

913j Loss Prevention Certification Board (LPCB): LPS 1175 A1 (SR1)

QA Certificate

QA Certificate

913r Loss Prevention Certification Board (LPCB): LPS 1175 A1

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001:2015 Quality Management System

Literature

LPCB LPS 1175 Rated Fencing Products

LPCB LPS 1175 Rated Fencing Products
