EuroGuard® Extra Fencing
Verified by manufacturer 5 months ago
ISO 9001 Quality Management
Certificate type

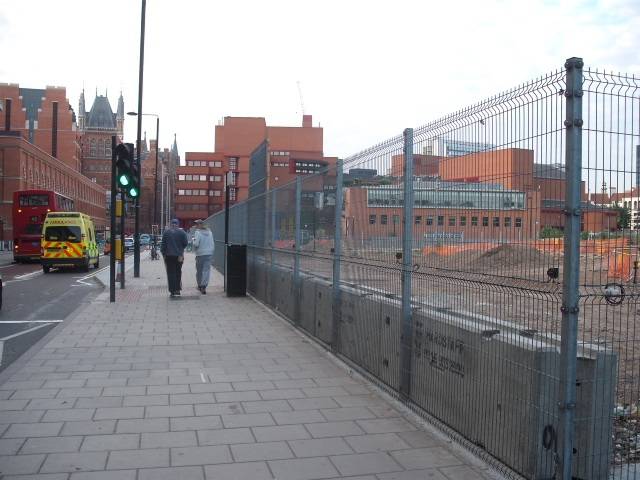

Welded V mesh panel security fencing.
Application
Suitable for higher risk applications where security is a priority. For schools, transport and commercial properties.
Description
Welded V mesh panel security fencing. These welded mesh panels are exclusive to Jacksons and feature thicker vertical and horizontal wires and smaller mesh aperture. Matching gates are available in swing, cantilever sliding and tracked with either automated or manual operation.
Features and benefits:
- Can be stepped to accommodate sloping ground.
- Post can be adapted to mount CCTV cameras, lighting or physical security devices.
- Strong anti-climb design.
- Distinctive vandal-proof panel to post fixing.
- Extra-rigid V-profiled welded mesh panels.
- Matching single leaf and double leaf gates available.
- Posts can be customized for barbed wire/ razor wire / Rota Spike®/ Alarm-aFence®.
- V-mesh design offers strength and security without an intimidating appearance.
- Wire gauge measured before coating.
- 25-year guarantee.
- Zinc alloy coated panels and galvanised posts.
General information
Finish | Galvanized Powder-coated |
Material | Steel |
Width | 3054 mm Guidance for specification option: Per panel. |
Height | 2010 mm 2410 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | Q40/125 Open mesh steel panel general purpose fencing Q40/126 Open mesh steel panel security fencing Q40/27 Open mesh steel panel general purpose fencing Q40/30 Proprietary fencing Q40/430 Proprietary fencing |
Product range |
Specification data - Metal mesh panel fencing systems
Category | 2.Guidance for specification option: Welded mesh panels, security fencing. |
Posts | 80 x 60 mm rectangular hollow section (RHS) with anti-tamper connectors.Guidance for specification option: Posts are hot-dip galvanized to BS EN 1461. |
Post foundations | Over length set in concrete.Guidance for specification option: As standard. Base plated to bolt down onto concrete.Cranked to suit wall mounting.Manufacturer guidance3054 mm centres. |
Panels | V-mesh panels, 2010 mm high.Guidance for specification option: Overall post length: 2800 mm. V-mesh panels, 2410 mm high.Guidance for specification option: Overall post length: 3300 mm. Manufacturer guidance3000 mm wide with 5 mm horizontal and vertical wires with 200 x 30 mm wire centres. |
Fence topping | Security toppings.Guidance for specification option: Consult manufacturer and insert requirements. Fence spikes.Guidance for specification option: Consult manufacturer and insert requirements. Security comb.Guidance for specification option: Consult manufacturer and insert requirements. |
System accessories | Not required.Matching gates.Guidance for specification option: Consult manufacturer and insert requirements. |
Worked finish | Galvanized. Guidance for specification option: Hot-dip galvanized to BS EN 1461; Galfan® zinc alloy coated. Galvanized and powder-coated, black RAL 9005. Guidance for specification option: To BS EN 13438. Galvanized and powder-coated, green RAL 6005. Guidance for specification option: To BS EN 13438. Galvanized and powder-coated, other. Guidance for specification option: To BS EN 13438. Special order, insert requirements, BS or RAL code. Marine coated. Guidance for specification option: For installations within 500 m of salt water or an estuary. |
Sustainability data
Country of product manufacture | United Kingdom |
Third party certifications
ISO 9001 Quality Management
ISO 9001:2015 Quality Management System
Literature
Welded Mesh Fencing
