EuroGuard® Flatform Fencing

Name: EuroGuard® Flatform Fencing
Brand: Jacksons Fencing
SKU: cu87pAZ72t4Z6cEgrdvyCQ

Verified by manufacturer 5 months ago

Jacksons Fencing

Third party certifications:

ISO 9001 Quality Management
Certificate type

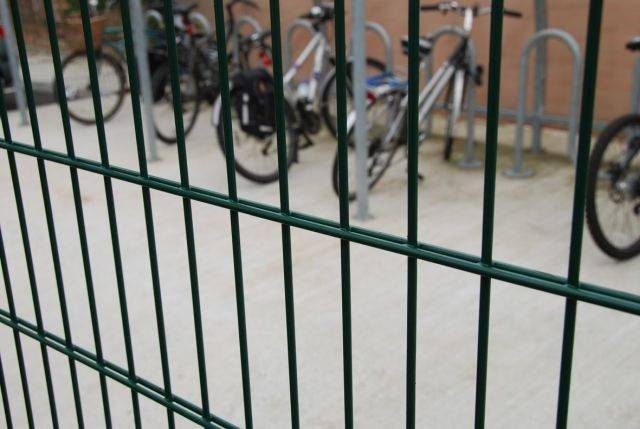

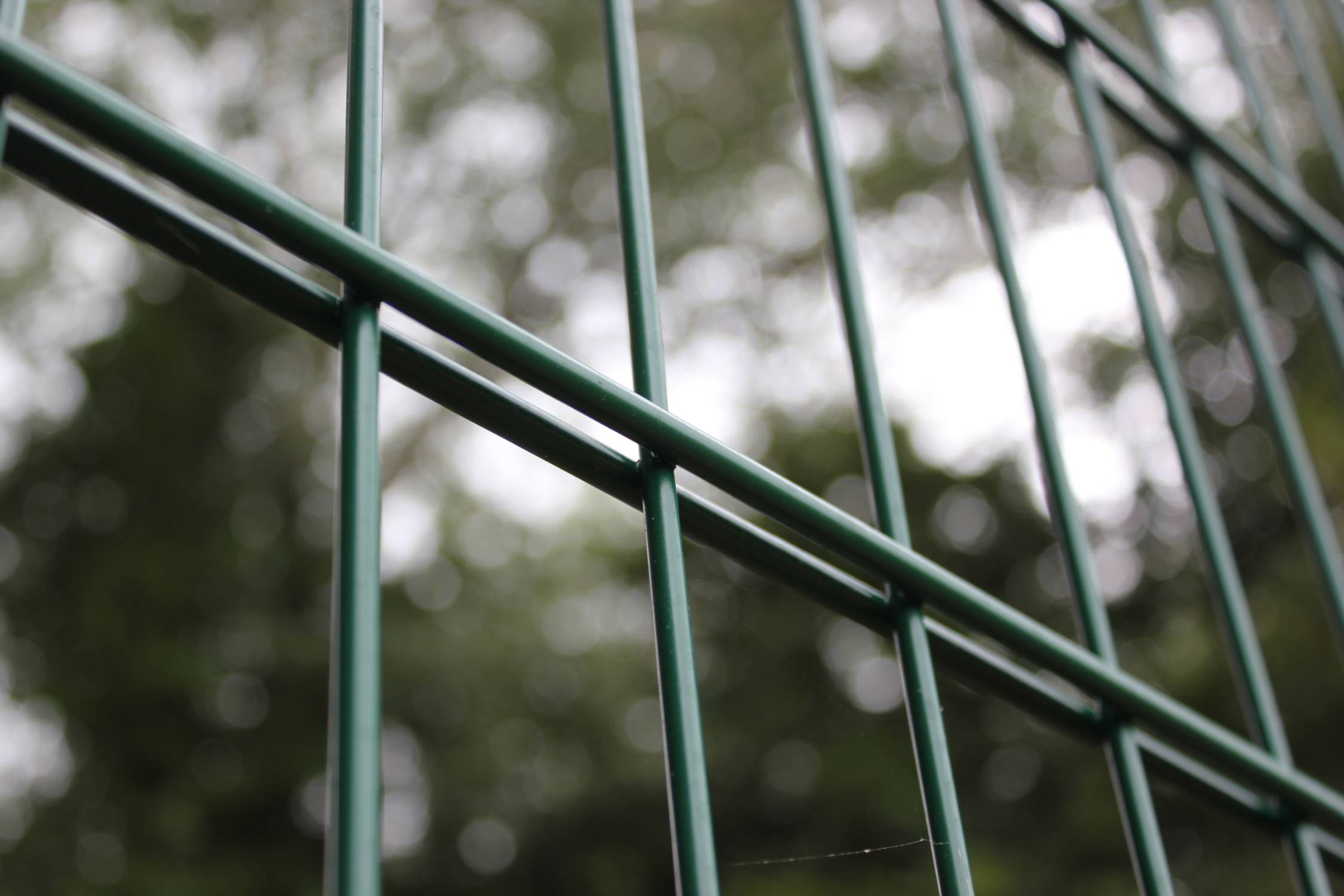

Welded mesh panel security fencing with twin horizontal wires and flat profile.

Jump to:

0800 408 4757 Website

Application

Suitable for light commercial sites or similar installations; anywhere durability and security are important. For schools, sports and leisure and commercial sites.

Description

Welded mesh panel security fencing. The panels have a flat profile with double horizontal wires and panels can be stacked above one another to give a 6 m high fence. Matching gates are available in swing, cantilever sliding and tracked in either automated or manual operation.

Features and benefits:

Available in either medium or heavy wire variations.
Can be stepped to accommodate sloping ground.
Mesh spacing conforms to building regulations for anti-trap.
Posts can be adapted to add security toppings for extra security.
Strong anti-climb design.
Distinctive vandal-proof panel to post fixing.
25-year guarantee.
Zinc alloy coated for increased protection against rust.
Wire gauge measured before coating.

General information

Finish	Galvanized Powder-coated
Material	Steel
Width	3000 mm Guidance for specification option: Per panel.
Height	1030 mm 1230 mm 1830 mm 2030 mm 2430 mm
Warranty description	25 year

Uniclass	Ss_25_14_61_51 Metal mesh panel fencing systemsPrimary
CAWS	Q40/125 Open mesh steel panel general purpose fencing Q40/126 Open mesh steel panel security fencing Q40/27 Open mesh steel panel general purpose fencing Q40/30 Proprietary fencing Q40/430 Proprietary fencing

Product range	Mesh Security Fencing

Specification data - Metal mesh panel fencing systems

Category	2. Guidance for specification option: Welded mesh security fencing.
Posts	60 x 40 mm rectangle hollow section (RHS) with anti-tamper connectors. Guidance for specification option: Posts are hot-dipped galvanized to BS EN 1461. Specify colour/ finish below.
Post foundations	Over length set in concrete. Guidance for specification option: As standard. Base plated to bolt down onto concrete. Cranked to suit wall mounting.
Panels	Medium wire, 1030 mm high. Guidance for specification option: Double 6 mm wire with 5 mm vertical wire. Medium wire, 1230 mm high. Guidance for specification option: Double 6 mm wire with 5 mm vertical wire. Medium wire, 1830 mm high. Guidance for specification option: Double 6 mm wire with 5 mm vertical wire. Medium wire, 2030 mm high. Guidance for specification option: Double 6 mm wire with 5 mm vertical wire. Medium wire, 2430 mm high. Guidance for specification option: Double 6 mm wire with 5 mm vertical wire. Heavy wire, 1030 mm high. Guidance for specification option: Double 8 mm wire with 6 mm vertical wire. Heavy wire, 1230 mm high. Guidance for specification option: Double 8 mm wire with 6 mm vertical wire. Heavy wire, 1830 mm high. Guidance for specification option: Double 8 mm wire with 6 mm vertical wire. Heavy wire, 2030 mm high. Guidance for specification option: Double 8 mm wire with 6 mm vertical wire. Heavy wire, 2430 mm high. Guidance for specification option: Double 8 mm wire with 6 mm vertical wire. Manufacturer guidance Flat profile with horizontal twin wire, 195 x 45 mm wire gaps. Panels can be stacked for a 6000 mm-high fence. Specify colour/ finish below.
Fence topping	Security toppings. Guidance for specification option: Consult manufacturer and insert requirements. Fence spikes. Guidance for specification option: Consult manufacturer and insert requirements. Security comb. Guidance for specification option: Consult manufacturer and insert requirements.

Posts	Galvanized. Guidance for specification option: Hot-dip galvanized to BS EN 1461. Galvanized and powder-coated, black RAL 9005. Guidance for specification option: To BS EN 13438. Galvanized and powder-coated, green RAL 6005. Guidance for specification option: To BS EN 13438. Galvanized and powder-coated, other. Guidance for specification option: To BS EN 13438. Special order, insert requirements. Marine coated. Guidance for specification option: For installations within 500 m of salt water or an estuary.
Panels	Zinc alloy-coated. Guidance for specification option: Standard. Galfan® zinc alloy coated. Zinc alloy-coated and powder-coated, black RAL 9005. Guidance for specification option: To BS EN 13438. Zinc alloy-coated and powder-coated, green RAL 6005. Guidance for specification option: To BS EN 13438. Galvanized and powder-coated, other. Guidance for specification option: To BS EN 13438. Special order, insert requirements. Marine coated. Guidance for specification option: For installations within 500 m of salt water or an estuary.
