EuroGuard® Flatform Heavy A1 Fencing

Verified by manufacturer 5 months ago

Jacksons Fencing Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

LPS 1175 security-rated welded mesh panel fencing.

Jump to:
0800 408 4757 Website

Application

Suitable for sites requiring good visibility and security. Suitable for commercial premises, educational establishments, perimeters, public spaces and retail sites.

Description

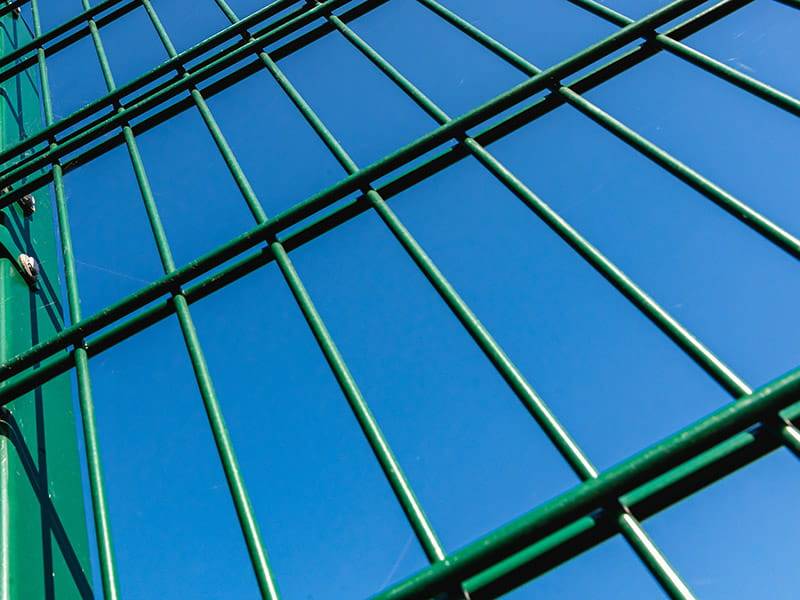

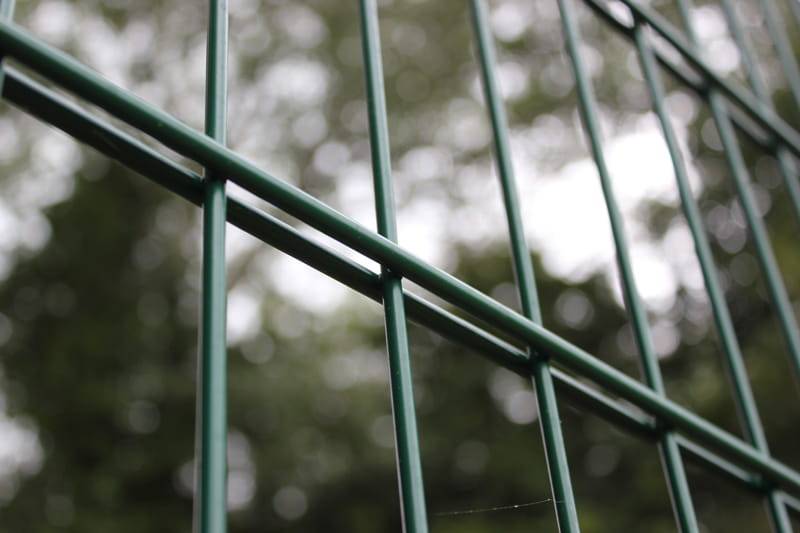

Security-rated welded mesh panel fencing. It consists of a flat profile, heavy gauge double horizontal wire welded mesh for strength and rigidity.


Features and benefits:

  • Anti-climb design.
  • LPS 1175 A1 (SR1) approved.
  • Secured by Design preferred specification.
  • Matching A1 gates available.
  • 25-year guarantee.
  • Wire gauge measured before coating.
  • Zinc alloy coated for increased protection against rust.

General information

Color

Black

Other

Blue

Brown

Red

Show more

Finish

Galvanized

Powder-coated

Material

Steel

Shape

Rectangle

Width

3034 mm

3054 mm

Height

2030 mm

2430 mm

Warranty description

25 year

Uniclass

Ss_25_14_61_51 Metal mesh panel fencing systemsPrimary

CAWS

Q40/125 Open mesh steel panel general purpose fencing

Q40/126 Open mesh steel panel security fencing

Q40/27 Open mesh steel panel general purpose fencing

Q40/30 Proprietary fencing

Q40/430 Proprietary fencing

Product range

LPS 1175 Certified Fencing
Mesh Security Fencing

Specification data - Metal mesh panel fencing systems

Category

2.

Guidance for specification option:

Security-rated fencing.

Posts

Manufacturer's standard.

Guidance for specification option:

Fence height 2030 mm: 60 x 40 mm.

Fence height 2430 mm: 80 x 60 mm.

Manufacturer guidance

Colour/ finish specified separately below.

Post foundations

Over length set in concrete.

Guidance for specification option:

As standard.

Base plated to bolt down onto concrete.

Cranked to suit wall mounting.

Manufacturer guidance

Post centres: 3034 mm.

Panels

200 x 50 mm mesh, 2030 mm high.

200 x 50 mm mesh, 2430 mm high.

Manufacturer guidance

3000 mm wide as standard.

Wire is 8 mm (horizontal-double) or 6 mm (vertical-double).


Colour/ finish specified separately below.

Fence topping

Security toppings.

Guidance for specification option:

Consult manufacturer and insert requirements.

Fence spikes.

Guidance for specification option:

Consult manufacturer and insert requirements.

Security comb.

Guidance for specification option:

Consult manufacturer and insert requirements.

System accessories

None.

Matching gates.

Guidance for specification option:

Specified separately.

Posts

Galvanized.

Guidance for specification option:

Hot-dip galvanized to BS EN 1461.

Galvanized and powder-coated, black RAL 9005.

Guidance for specification option:

To BS EN 13438.

Galvanized and powder-coated, green RAL 6005.

Guidance for specification option:

To BS EN 13438.

Galvanized and powder-coated, other.

Guidance for specification option:

To BS EN 13438.

Special order, insert requirements.

Marine coated.

Guidance for specification option:

For installations within 500 m of salt water or estuaries.

Panels

Zinc alloy-coated.

Guidance for specification option:

Galfan® zinc alloy coated.

Zinc alloy-coated and powder-coated, black RAL 9005.

Guidance for specification option:

To BS EN 13438.

Zinc alloy-coated and powder-coated, green RAL 6005.

Guidance for specification option:

To BS EN 13438.

Zinc alloy-coated and powder-coated, other.

Guidance for specification option:

To BS EN 13438.

Special order, insert requirements. BS or RAL code.

Marine coated.

Guidance for specification option:

For installations within 500 m of salt water or estuaries.

Sustainability data

Country of product manufacture

United Kingdom

Third party certifications

QA Certificate

QA Certificate

913j Loss Prevention Certification Board (LPCB): LPS 1175 A1 (SR1)

QA Certificate

QA Certificate

913r Loss Prevention Certification Board (LPCB): LPS 1175 A1

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001:2015 Quality Management System
