EuroGuard® Combi Fencing

Verified by manufacturer 5 months ago

1585 mm high

Jacksons Fencing Variant:
Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

Welded mesh panel security fencing with timber slats.

Jump to:
0800 408 4757 Website

Application

For storage areas, schools, commercial properties, rural properties and medium risk areas.

Description

Welded mesh panel security fencing with timber slats. The design combines the aesthetics of natural wood with the strength of steel. The robust welded mesh panels and matching gates provide additional advantages of a flat facing surface with no hand or foot holds for enhanced security, and closely spaced slats for added concealment. Matching gates are available in swing, cantilever sliding and tracked in either automated or manual operation.


Features and benefits:

  • Can be stepped to accommodate sloping ground.
  • Mesh spacing conforms to building regulations for anti-trap.
  • Distinctive vandal-proof panel to post fixing.
  • Welded mesh panels.
  • Timber slats are Jakcure® pressure treated.
  • Zinc alloy coated mesh for increased protection against rust.
  • 25-year guarantee on timber and steel.
  • 5 mm wire gauge measured before coating.

General information

Color

Black

Blue

Brown

Green

Grey

Show more

Finish

Galvanized

Powder-coated

Material

Wood

Steel

Width

3054 mm

Guidance for specification option:

Per panel.

Height

1585 mm

1870 mm

2070 mm

2470 mm

3170 mm

Warranty description

25 year

Guidance for specification option:

Softwood timber Jakcure®-treated products are guaranteed against all wood-boring pests and all forms of wet and dry rot for 25 years.

Uniclass

Ss_25_14_61_51 Metal mesh panel fencing systemsPrimary

CAWS

Q40/27 Open mesh steel panel general purpose fencing

Q40/125 Open mesh steel panel general purpose fencing

Q40/30 Proprietary fencing

Q40/430 Proprietary fencing

Product range

Mesh Security Fencing

Specification data - Metal mesh panel fencing systems

Posts

60 x 60 mm rectangle hollow section (RHS) with anti-tamper connectors (plus spur post - site dependent).

Guidance for specification option:

Posts are hot-dip galvanized to BS EN 1461; see below for colour/ finish options.

Post foundations

Over length set in concrete.

Guidance for specification option:

As standard.

Base plated to bolt down onto concrete.

Cranked to suit wall mounting.

Manufacturer guidance

Post centres: 3054 mm.

Panels

Welded mesh with Jakcure® pressure-treated, 40 x 17 mm timber slats.

Guidance for specification option:

Mesh colour/ finish specified below - See 'Panels'.

Manufacturer guidance

Mesh panels with 'V' profile and 2–4 reinforcing folds (subject to height). Made using 5 mm horizontal and vertical wires with 200 x 50 mm mesh centres, welded at intersections.

Fence topping

Security toppings.

Guidance for specification option:

Consult manufacturer and insert requirements.

Fence spikes.

Guidance for specification option:

Consult manufacturer and insert requirements.

Security comb.

Guidance for specification option:

Consult manufacturer and insert requirements.

System accessories

None.

Matching gates.

Guidance for specification option:

Consult manufacturer and insert requirements or specify separately.

Matching single and double leaf gates are available for this product, with a range of opening actions and manual and automatic operating options.

Height

1585 mm.

Guidance for specification option:

Overall post length: 2100 mm.

Posts

Galvanized.

Guidance for specification option:

Hot-dip galvanized to BS EN 1461.

Galvanized and powder-coated, black RAL 9005.

Guidance for specification option:

To BS EN 13438.

Galvanized and powder-coated, green RAL 6005.

Guidance for specification option:

To BS EN 13438.

Galvanized and powder-coated, grey RAL 7012.

Guidance for specification option:

To BS EN 13438.

Galvanized and powder-coated, blue BS 20-C-40.

Guidance for specification option:

To BS EN 13438.

Show more

Panels

To match posts.

Zinc alloy-coated.

Guidance for specification option:

Galfan zinc alloy coated.

Zinc alloy-coated and powder-coated, black RAL 9005.

Guidance for specification option:

To BS EN 13438.

Zinc alloy-coated and powder-coated, green RAL 6005.

Guidance for specification option:

To BS EN 13438.

Zinc alloy-coated and powder-coated, grey RAL 7012.

Show more

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Third party certifications

QA Certificate

QA Certificate

913t Loss Prevention Certification Board (LPCB): LPS 1175 A1 (SR1)

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001:2015 Quality Management System

QA Certificate

QA Certificate

913r Loss Prevention Certification Board (LPCB): LPS 1175 A1

Literature

Welded Mesh Fencing

Welded Mesh Fencing

Case studies

Bespoke EuroGuard Combi Security Fencing BMW Service Centre

Bespoke EuroGuard Combi Security Fencing BMW Service Centre

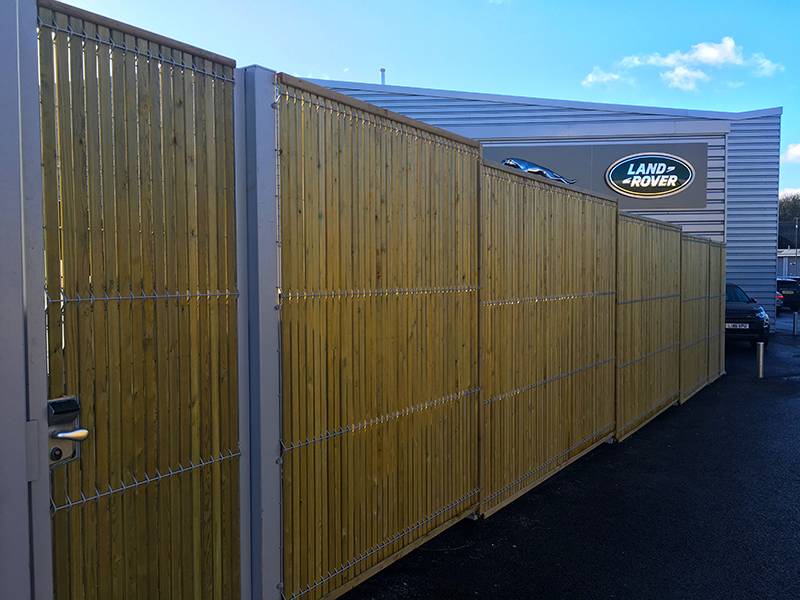

Jacksons’ Euroguard Combi secures Jaguar Land Rover’s New Luxury Showroom
