Securi-Mesh® A1 Fencing

Verified by manufacturer 5 months ago

Jacksons Fencing Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

LPS 1175 certified high security mesh panels.

Jump to:
0800 408 4757 Website

Application

Offers a solution for a wide variety of high security perimeter and access control applications. For use in prisons, utilities, and data centres.

Description

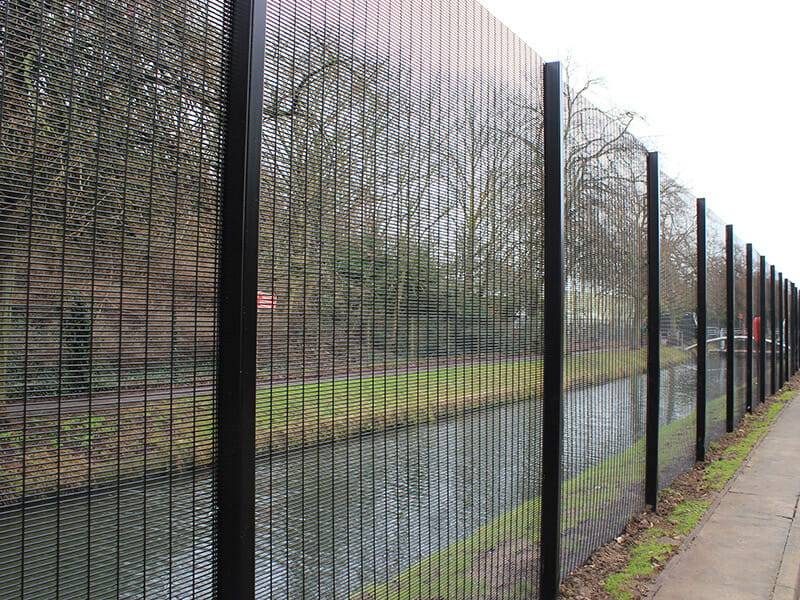

LPS 1175 security-rated welded mesh panels. Where the application specifically requires a cost effective, heavy-duty security mesh design to meet specifications including the use of CCTV, or where a visual deterrent is a primary consideration, the ‘358’ Securi-Mesh® A1 system provides an ideal solution.


Features and benefits:

  • Strong.
  • Tamper proof.
  • Virtually impossible to climb.
  • Secured by Design preferred specification.
  • Virtually impossible to cut using conventional hand tools.
  • Securi-Mesh® A1 has been certified to LPS 1175 A1 (SR1), delivering a one minute delay to attack using category A tools such as cable cutters, engineers' hooks, glass cutters and pliers
  • 25-year guarantee

General information

Color

Green

Black

Other

Grey

Blue

Show more

Finish

Galvanized

Powder-coated

Material

Steel

Width

2451 mm

Height

Bespoke

Guidance for specification option:

1800–6000 mm.

Warranty description

25 year

Uniclass

Ss_25_14_61_51 Metal mesh panel fencing systemsPrimary

CAWS

Q40/125 Open mesh steel panel general purpose fencing

Q40/27 Open mesh steel panel general purpose fencing

Q40/30 Proprietary fencing

Product range

LPS 1175 Certified Fencing
Mesh Security Fencing

Specification data - Metal mesh panel fencing systems

Category

2.

Guidance for specification option:

Security-rated welded mesh fencing.

Posts

Manufacturer's standard.

Guidance for specification option:

Box section RHS or CHS, designed to suit specific applications.

Centres: 2451 mm maximum.

Post foundations

Over length set in concrete.

Guidance for specification option:

Standard.

Base plated to bolt down onto concrete.

Cranked to suit wall mounting.

Panels

-

Manufacturer guidance

Insert height requirements, 1800–6000 mm.

1518.6 mm wide; 76.2 x 12.7 mm mesh (3” x 1/2”) with 4 mm wire.

Site applied finishes

Galvanized.

Guidance for specification option:

Standard. Hot-dip galvanized to BS EN ISO 1461.

Galvanized and powder-coated, green RAL 6005.

Guidance for specification option:

Hot-dip galvanized and powder coated to BS EN 13438.

Galvanized and powder-coated, black RAL 9005.

Galvanized and powder-coated, other.

Guidance for specification option:

Insert requirements, BS or RAL code.

Marine coat.

Guidance for specification option:

For installations within 500 m of salt water or an estuary.

System accessories

None.

Rota spike.

Cobra spike.

Cobra spike rotary.

Viper spike.

Barbed wire.

Razor wire.

Jaktronic Perimeter Intruder Detection System (PIDS).

Sustainability data

Country of product manufacture

United Kingdom

Third party certifications

QA Certificate

QA Certificate

913t Loss Prevention Certification Board (LPCB): LPS 1175 A1 (SR1)

QA Certificate

QA Certificate

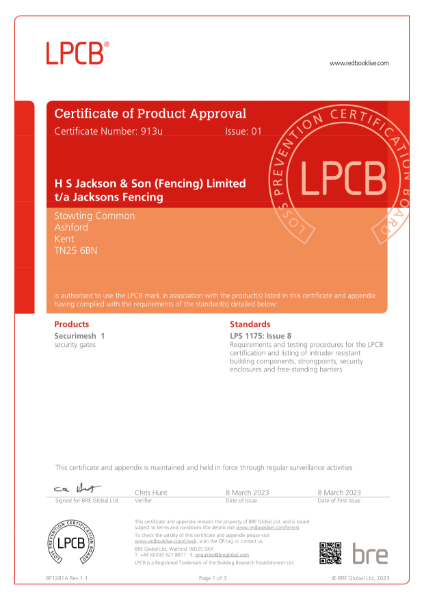

913u Loss Prevention Certification Board (LPCB): LPS 1175 A1

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001:2015 Quality Management System
