V-mesh fence panel and post system.
Suitable for almost any application from decorative and secure to highly secure. Suitable for residential areas, commercial properties, schools or car parks.

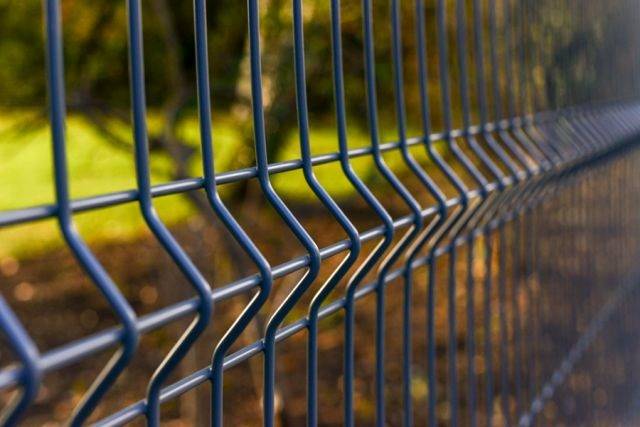

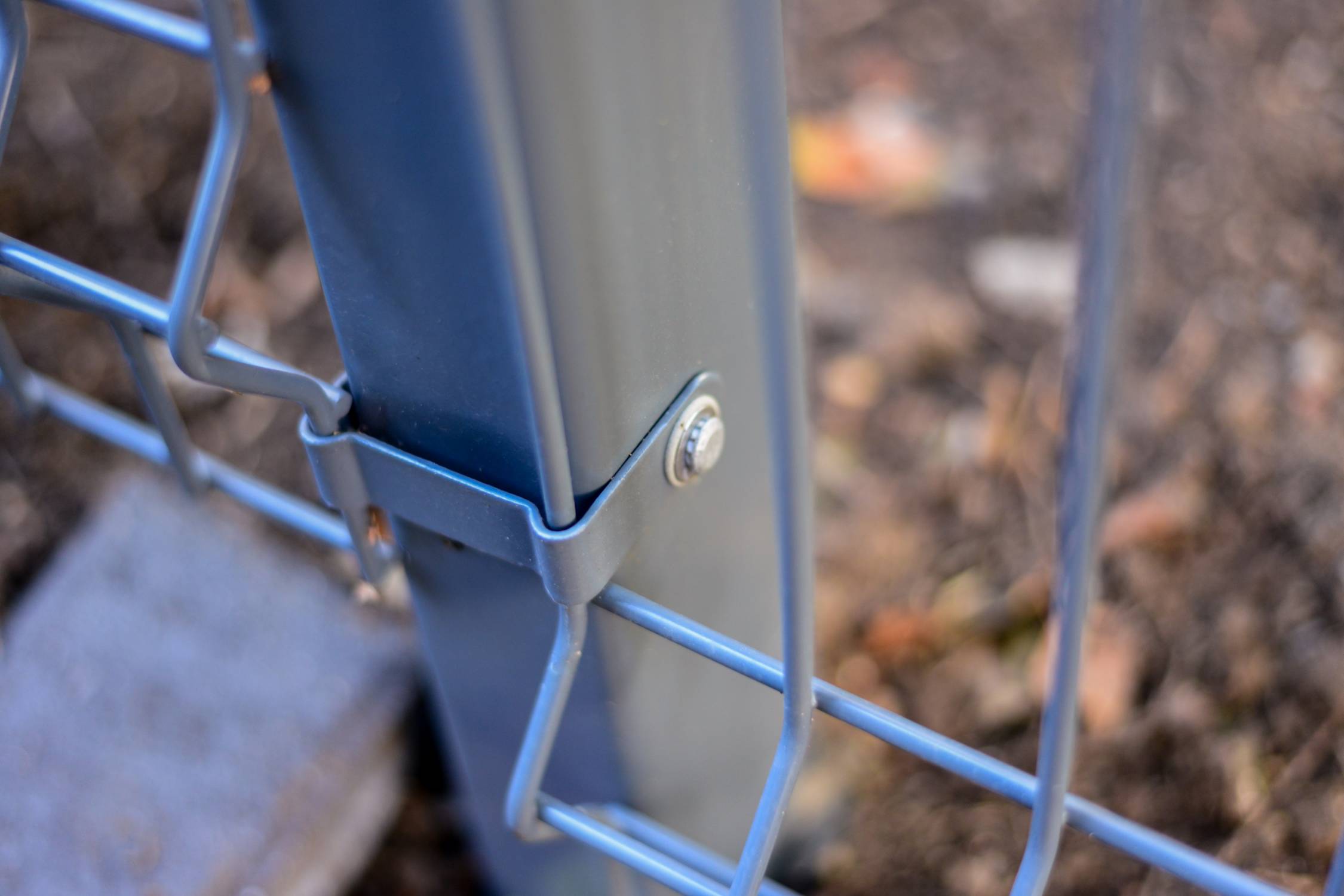

V-mesh fencing with high visibility and tamper proof construction. The ’V’ shaped profile reinforcing folds increase the panel’s rigidity and strength. Featuring extra-strong, vandal-proof panel to post fittings.
Features and benefits:
Color | Black Green Other |
Finish | Galvanized Powder-coated |
Material | Steel |
Shape | Rectangle |
Width | 3000 mm Guidance for specification option: Per panel. |
Height | 1520 mm 1810 mm 2000 mm 2410 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | Q40/125 Open mesh steel panel general purpose fencing Q40/126 Open mesh steel panel security fencing Q40/27 Open mesh steel panel general purpose fencing Q40/30 Proprietary fencing Q40/430 Proprietary fencing |
Product range |
Category | 2.Guidance for specification option: Welded mesh fencing, V-mesh fencing, security fencing. |
Posts | Rectangle hollow section (RHS) with anti-tamper connectors.Guidance for specification option: Length dependent on panel height; see Panels guidance for details. Post are hot-dip galvanized to BS EN 1461. Typical standard fence posts 60 x 40 mm or 80 x 60 mm subject to height of fence. |
Post foundations | Over length set in concrete.Guidance for specification option: As standard. Base plated to bolt down onto concrete.Cranked to suit wall mounting.Manufacturer guidancePost centres: 3034 mm. |
Panels | 200 x 45 mm mesh, 1520 mm-high.Guidance for specification option: Overall post length: 2100 mm. 200 x 45 mm mesh, 1810 mm-high.Guidance for specification option: Overall post length: 2500 mm. 200 x 45 mm mesh, 2000 mm-high.Guidance for specification option: Overall post length: 2800 mm. 200 x 45 mm mesh, 2410 mm-high.Guidance for specification option: Overall post length: 3300 mm. Manufacturer guidance3000 mm wide. 5 mm wires with two to four reinforcing folds depending on height, vertical wires are at 50 mm centres. |
Fence topping | None.Barbed wire.Razor wire.Jaktronic Perimeter Intruder Detection System (PIDS).Security toppings.Guidance for specification option: Consult manufacturer for options and insert requirements. Fence spikes.Guidance for specification option: Consult manufacturer for options and insert requirements. Security comb.Guidance for specification option: Consult manufacturer for options and insert requirements. |
System accessories | None.Matching gates.Guidance for specification option: To be specified separately. |
Worked finish | Galvanized. Guidance for specification option: Standard. Posts hot-dip galvanized to BS EN ISO 1461; mesh panels zinc alloy-coated. Galvanized, black RAL 9005. Guidance for specification option: To BS EN 13438. Galvanized, green RAL 6005. Guidance for specification option: To BS EN 13438. Galvanized, other. Guidance for specification option: To BS EN 13438; insert requirements. Marine coated. Guidance for specification option: For installations within 500 m of salt water or an estuary. |
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
