EuroGuard® Rebound Fencing

Name: EuroGuard® Rebound Fencing
Brand: Jacksons Fencing
SKU: vxybHG9zL2TjfeTNQ99uei

Verified by manufacturer 6 months ago

Jacksons Fencing

Third party certifications:

ISO 9001 Quality Management
Certificate type

An alternative to chain link fencing, for high impact sports pitches and courts.

Jump to:

0800 408 4757 Website

Application

For use in sports enclosures and suitable for withstanding high impact sports i.e. hockey or football.

Description

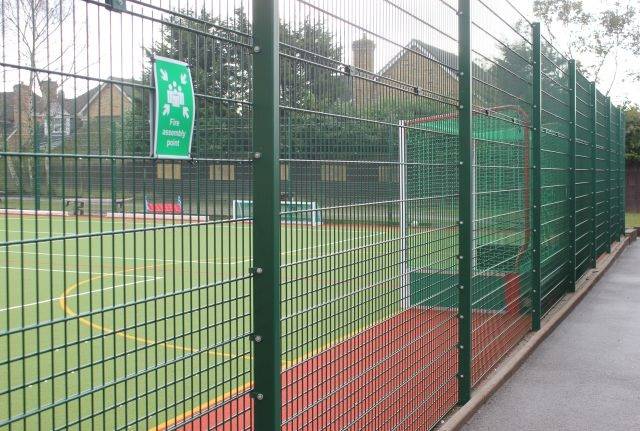

Sports mesh fencing for MUGAs, pitches, and courts, suitable for high impact sports. The double wire gives it more rigidity and reduces the vibration along the fence line. The mesh aperture is small enough to prevent sports balls from escaping, but still allows the spectator to have an unobscured view.

Features and benefits:

Reduces vibrations from high impact sports.
Can be stepped to accommodate sloping ground.
Easy to install.
Anti-climb.
Vandal-proof fixings.
Matching fencing available.
25-year guarantee.
Wire gauge measured before coating.

General information

Color	Black Blue Brown Green Grey Red White Yellow Other Show more
Finish	Galvanized Powder-coated
Material	Steel
Width	3000 mm Guidance for specification option: Per panel.
Height	2030 mm Guidance for specification option: Can be stacked up to 6000 mm.
Warranty description	25 year

Uniclass	Ss_25_14_61_51 Metal mesh panel fencing systemsPrimary
CAWS	Q40/125 Open mesh steel panel general purpose fencing Q40/126 Open mesh steel panel security fencing Q40/27 Open mesh steel panel general purpose fencing Q40/30 Proprietary fencing Q40/430 Proprietary fencing

Product range	Sports Fencing Mesh Security Fencing

Specification data - Metal mesh panel fencing systems

Category	1. Guidance for specification option: Sports fencing.
Posts	80 x 60 mm rectangle hollow section (RHS) with anti-tamper connectors. Guidance for specification option: Overall length: 2800 mm. Posts are hot-dipped galvanized to BS EN 1461.
Post foundations	Over length set in concrete. Guidance for specification option: As standard. Base plated to bolt down onto concrete. Cranked to suit wall mounting. Manufacturer guidance Post centres: 3010 mm.
Panels	Manufacturer's standard. Guidance for specification option: 2030 mm high; 3000 mm wide (per panel). 50 x 66.6 mm mesh at the base to 1200 mm then reverts to 200 x 50 mm above up to 2030 mm. Mesh panels can be stacked up to 6000 mm with posts designed to suit application.

Finish/ Colour	Galvanized. Guidance for specification option: Galfan® zinc alloy coated. Galvanized and powder-coated, black RAL 9005. Guidance for specification option: To BS EN 13438. Galvanized and powder-coated, green RAL 6005. Guidance for specification option: To BS EN 13438. Galvanized and powder-coated, other. Guidance for specification option: To BS EN 13438. Special order, insert requirements. Marine coated. Guidance for specification option: For installations within 500 m of salt water or an estuary.
