Securi-Mesh® Plus B3

Verified by manufacturer 5 months ago

Jacksons Fencing Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

LPS 1175 certified welded mesh fencing.

Jump to:
0800 408 4757 Website

Application

For high risk sites, commercial premises, education, perimeter security, public spaces and retail.

Description

LPS 1175 B3 certified welded mesh fencing with double mesh layers.


Features and benefits:

  • LPS 1175 B3 (SR2) certified.
  • Secured by Design preferred specification.
  • Stainless steel fixings.
  • Double layer mesh design.
  • Jaktronic PIDS compatible.
  • B3 gates available to match.
  • 25-year guarantee.

General information

Color

Green

Black

Other

Blue

Brown

Show more

Finish

Galvanized

Powder-coated

Material

Steel

Width

2451 mm

Height

2442 mm

5000 mm

Bespoke

Warranty description

25 year

Uniclass

Ss_25_14_61_51 Metal mesh panel fencing systemsPrimary

CAWS

Q40/125 Open mesh steel panel general purpose fencing

Q40/126 Open mesh steel panel security fencing

Q40/27 Open mesh steel panel general purpose fencing

Q40/30 Proprietary fencing

Q40/430 Proprietary fencing

Product range

LPS 1175 Certified Fencing
Mesh Security Fencing

Specification data - Metal mesh panel fencing systems

Category

2.

Guidance for specification option:

Security-rated welded mesh fencing.

Posts

To suit site.

Guidance for specification option:

Consult manufacturer for details.

Specify colour/ finish separately below.

Manufacturer guidance

Post centres: 2451 mm.

Post foundations

Over length set in concrete.

Guidance for specification option:

As standard

Base plated to bolt down onto concrete.

Cranked to suit wall mounting.

Panels

Guidance for specification option:

Insert height requirements, 2442–5000 mm.

Specify colour/ finish separately below.

Manufacturer guidance

Staggered double skin of 76.2 x 12.7 mm resistance mesh, welded at each intersection up to 2400 mm only.

The second panel is an internal skin only, single layer then from 2400 mm upwards.

Fence topping

None.

Rota spike.

Cobra spike.

Cobra spike rotary.

Viper spike.

Barbed wire.

Razor wire.

Jaktronic perimeter intruder detection system (PIDS).

System accessories

None.

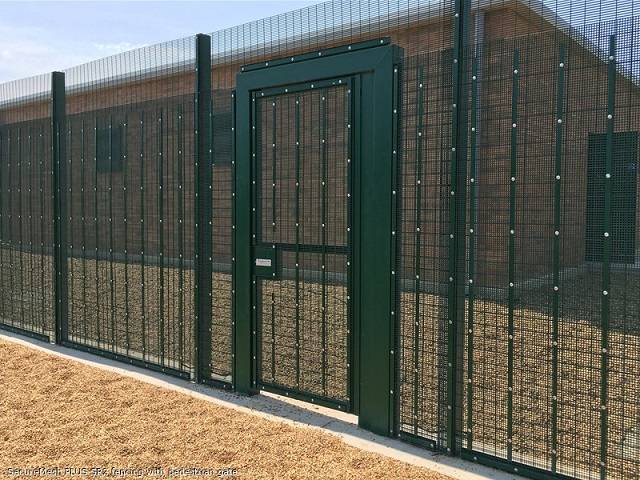

Matching gates.

Guidance for specification option:

Specified separately.

Panels

Zinc alloy coated.

Zinc alloy-coated and powder-coated, black RAL 9005.

Guidance for specification option:

To BS EN 13438.

Zinc alloy-coated and powder-coated, green RAL 6005.

Guidance for specification option:

To BS EN 13438.

Zinc alloy-coated and powder-coated, other.

Guidance for specification option:

To BS EN 13438.

Special order, insert requirements, BS or RAL code.

Marine coated.

Guidance for specification option:

For installations within 500 m of salt water or an estuary.

Posts

Galvanized.

Guidance for specification option:

Hot-dip galvanized to BS EN 1461.

Galvanized and powder-coated, black RAL 9005.

Guidance for specification option:

To BS EN 13438.

Galvanized and powder-coated, green RAL 6005.

Guidance for specification option:

To BS EN 13438.

Galvanized and powder-coated, other.

Guidance for specification option:

To BS EN 13438.

Special order, insert requirements, BS or RAL code.

Marine coated.

Guidance for specification option:

For installations within 500 m of salt water or an estuary.

Sustainability data

Country of product manufacture

United Kingdom

Third party certifications

QA Certificate

QA Certificate

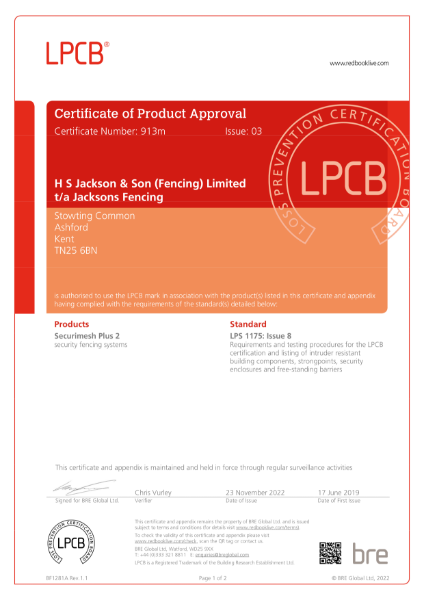

913m Loss Prevention Certification Board (LPCB): LPS 1175 B3 (SR2)

QA Certificate

QA Certificate

913s Loss Prevention Certification Board (LPCB): LPS 1175 B3

QA Certificate

QA Certificate

913v Loss Prevention Certification Board (LPCB): LPS 1175 A1

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001:2015 Quality Management System
