UHS Heavy Mesh SR3 - LPS 1175 certified security fencing
Verified by manufacturer 5 months ago
QA Certificate
Certificate type
ISO 9001 Quality Management
Certificate type
LPS 1175 security-rated mesh fencing.
Application
Designed to be used in high-security applications. It has been designed and tested to withstand forced entry using tools which include battery power tools.
Description
LPS 1175 security-rated mesh fencing capable of withstanding attacks from category C tools. Has additional clamp bars for strength and rigidity.
Features and benefits:
- LPS 1175 SR3 rating

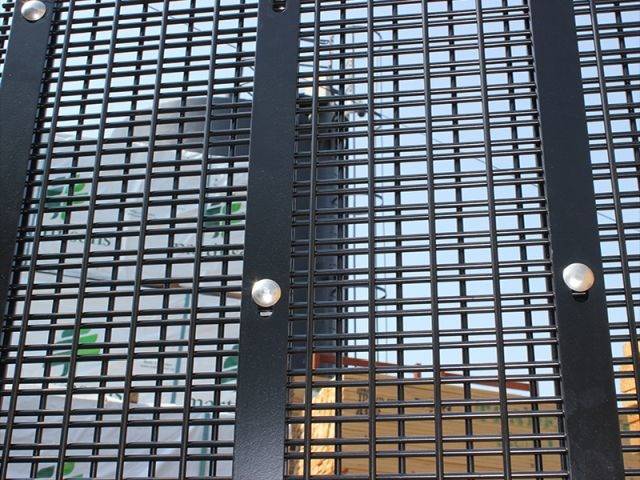

- Heavy gauge wire-welded mesh security fencing system.
- Double skinned - providing a high level of security.
- Designed to be used in high-security applications.
- Stainless steel fixings.
- Anti-climb design.
- Double 50 x 28 mm mesh - creating a smaller aperture.
- Clamp bars fitted at 250 mm centres.
- Matching single leaf gates also available.
- Galvanized for long life.
- SR3, A1, and B1 rated gates available to match.
General information
Color | Black Green Other |
Finish | Galvanized Powder-coated |
Material | Steel Stainless steel |
Shape | Rectangle |
Width | 2505 mm |
Height | 2415 mm 3031 mm |
Warranty description | 25 year Guidance for specification option: Dependent on application. |
Uniclass | |
CAWS | Q40/125 Open mesh steel panel general purpose fencing Q40/126 Open mesh steel panel security fencing Q40/27 Open mesh steel panel general purpose fencing Q40/30 Proprietary fencing Q40/430 Proprietary fencing |
Product range |
Specification data - Metal mesh panel fencing systems
Category | 3.Guidance for specification option: High security welded mesh fencing. |
Post foundations | Over length set in concrete.Guidance for specification option: Standard. Base plated.Guidance for specification option: To bolt down onto concrete. Manufacturer guidancePost centres: 2505 mm. |
Panels | CS mesh, 2415 mm high.CS mesh, 3031 mm high.Manufacturer guidanceThe C5 mesh system is constructed from 250 mm wire double skinned mesh with clamp bars added at 250 mm centres. |
Fence topping | Manufacturer guidanceBarbed wire, security comb, spikes and fence toppings available; insert requirements. |
System accessories | None.C5 (SR3) gates.Guidance for specification option: To be specified separately. |
Worked finish | Galvanized. Guidance for specification option: Standard. Galvanized and powder-coated, black RAL 9005. Guidance for specification option: To BS EN 13438. Galvanized and powder-coated, green RAL 5005. Guidance for specification option: To BS EN 13438. Galvanized and powder-coated, other. Guidance for specification option: To BS EN 13438; insert requirements (BS or RAL code). Marine coated. Guidance for specification option: For installation within 500 m of salt water or an estuary. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Third party certifications
QA Certificate

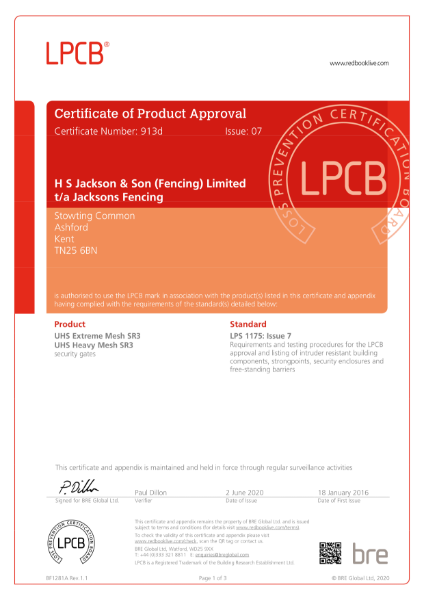

913c Loss Prevention Certification Board (LPCB): LPS 1175 SR3
QA Certificate
913d Loss Prevention Certification Board (LPCB): LPS 1175 SR3
QA Certificate
913w Loss Prevention Certification Board (LPCB): LPS 1175 A1
QA Certificate
913y Loss Prevention Certification Board (LPCB): LPS 1175 B1
ISO 9001 Quality Management
ISO 9001:2015 Quality Management System
